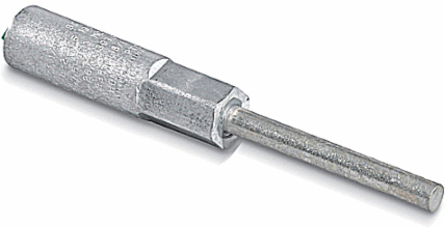

Blackburn PTB 350-10 A Aluminum Pin Terminal 10 Inch for 350 Kcmil Conductor with Oxide Inhibitor
- MPN: PTB 350-10 A
- UPC: 783786741830
- PPN: T-B-PTB 350-10 A
CAD
$83.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
All Aluminum Pin Terminal - Conductor Size 336.4-350 Kcmil Aluminum, Pin Length 10 Inches. Dies 1 1/8-1, 96, 299, 655, 316, 13A, 321, 94H. Brown Cap.Body 5.0 inch long x 1.124 inch diameter. Both Bores .719 diameter x 2.40 inch long.
Specifications
Packaging
| Outer Quantity | 25 |
|---|---|
| Weight Uom | 0.76 lbs. Each |
| Outer Dimensions (inches) | 23.7x6.8x4.9 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121409 Wire connectors |
|---|---|
| Brand Name | Blackburn |
| Special Features | Oxide Inhibitor and Metal Sealant Prevent Oxidatin and Protect Pin/Body from Moisture, All Pin Terminals Marked with Wire Size, Intalling Dies and Compression Locations fro easy identification |
| Size | Pin 10 Inches |
| Wire Size | Conductor Size 350 Kcmil |
| Finish | Bare |
| IGCC | 4543 Wire connectors |
|---|---|
| Type | Pin Terminal |
| Application | Connect Aluminum and ACSR to Copper-Alloy Equipment Clamps, Elimanating Cold-Flow Problems of Aluminum Conductor in Copper Clamps. |
| Connection | Compression/Crimp |
| Material | Aluminum |
| Insulation | None |
