Homac FS 10-125 ALUM 125 SERIES CONNECTR 1WAY 1BOLT
Homac FS 10-125 ALUM 125 SERIES CONNECTR 1WAY 1BOLT
- MPN: FS 10-125
- UPC: 783786725366
- PPN: T-B-FS 10-125
- UNSPSC: 39121443
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$471.03/ EA
Description

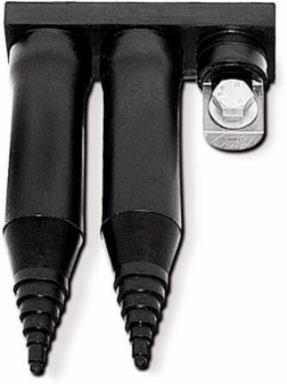

Aluminum Flood-Seal 125 Series Connectors - one-way configuration, one-bolt design, length 18-1/2 inch, outlets 10, includes 10 Insulating Towers and 10 Screws.
Specifications
Additional Information
- Application
- Multi-port Connector
- Color
- Black
- Effective Date
- 20080619
- Material
- Aluminum Connector, EPDM Rubber Insulation
- Product Name
- ELECTRICAL CONNECTOR <1000V
- Size
- 18-1/2 inch
- Standards
- ANSI C119.4
Brand / LabelHomac
Connection TypeMechanical
Insulation MaterialEPDM Rubber
Number of Conductors10
Product TypeFlood Seal Multi Port Connector 125 Series
Special FunctionsDual Rated for use with Aluminum or Copper Lugs from #12 to 500 kcmil. All Outlets Approved for Full cable rating - Safe and Reliable. All Connectors are 100 percent Hi-Pot Tested at 4000 Volts for 60 seconds. Designed for Maximum Contact to ensure Cooler Operation and more reliable joints. Outlets equipped with 1/2 inch Hex-head bolts with Captive Belleville washers to accept Standard one or two hole NEMA Aluminum or Copper Lugs.
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4663 >> Electrical underground bus connector
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
