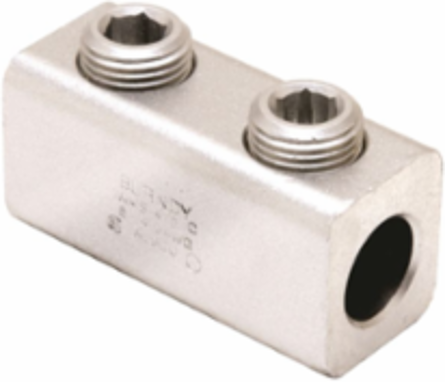

Burndy AMS4/0 Aluminum Mechanical Splice 4/0-6 AWG, 9/16 Inch Screw, 5/16 Inch Hex, Tin Plated
- MPN: AMS4/0
- UPC: 781810241028
- PPN: BUR-U55700370
- UNSPSC: 39121458
CAD
$22.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mechanical Splice for #6-4/0 AWG, Dual Rated, 2 Screws. Solid center barrier prevents contact of dissimilar metals.
Features
- Standard mounting hole diameter is .562” for 1/2” bolts
- The end wall within the cable socket of this design is solid and pressure tight
- Connectors are pre-filled and plugged with electrical joint compound
- Marked with catalog number, conductor size and die reference
- Meets performance requirements of ANSI C119.4
Specifications
Key Specifications
- ChannelSightWidgetId
- 705
- Standard
- ANSI C119.4
- Description - Invoice
- 4/0-6 DUAL RATED SPLICE
- Country of Origin
- Mexico
- Conductor - ACSR Str Size
- 4/0 AWG & 250 kcmil
- Conductor - AL Str Run Range
- 6 AWG-4/0 AWG
- Conductor - AL Str Size Range
- 6 AWG-4/0 AWG
- Conductor - AL Str Tap Range
- 6 AWG-4/0 AWG
- Conductor - Copper Solid Run Range
- 6 AWG-4/0 AWG
- Conductor - Copper Solid Size Range
- 6 AWG-4/0 AWG
- Conductor - Copper Solid Tap Range
- 6 AWG-4/0 AWG
- Conductor - Copper Str Run
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Str Size
- 4/0 AWG & 250 kcmil
- Conductor - Copper Str Tap
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Depth
- 0.56 in
- Dimension - H1 Height inch
- 1.09 in
- Dimension - L Length Overall mm
- 59 mm
- Dimension - Width fraction
- 1 in
- Dimension - Width mm
- 25 mm
- Height
- 1.28 in
- Industry Standard(s)
- ANSI C119.4
- Length
- 2.31 in
- Physical Attribute - Screw Type
- Slot
- Plating Type
- Tin
- Rating - Minimum Voltage
- 600
- Standards - RoHS Compliance Status
- EX
- Width
- 1 in
- Conductor Size
- 6-4/0 AWG
- Temperature Rating
- 194° F
- Certification Agency
- Proposition 65
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Sub Class Code
- B51BGHF
- UL Listed
- Yes
- Material - Hardware
- Aluminum
- BOX SIZE
- 11.000x10.000x17.000 (in)
- Carton - Number of Sub Packs
- 240
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810241028
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810241029
- Each - Pack Description
- Each
- Package - Gross Weight per Pack
- 1.7 lb.
- Package - Number of Sub Packs
- 10
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810241028
- Package Quantity
- 10 EA
- Pallet - GTIN - Package
- 70781810241027
- Standard Package Quantity
- 10
Size2.31 in x 1 in x 1.28 in
ARRA CompliantYes
Stock IndicatorN - Non-stock
Conductor - ACSR Cmpt Size250 kcmil-300 kcmil
Conductor - AL Str Run6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - AL Str Size6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - AL Str Tap6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Run6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Size6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Tap6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Str Compact Size250 kcmil-300 kcmil
Conductor - Copper Str Run Range6 AWG-4/0 AWG
Conductor - Copper Str Size Range6 AWG-4/0 AWG
Conductor - Copper Str Tap Range6 AWG-4/0 AWG
Description - SlangUniversal Splices
Dimension - Height fraction1-3/32
Dimension - Length Overall inch2.31 in
Dimension - Width inch1.00 in
Dimensions2.31 in x 1 in x 1.28 in
Hex Size5/16
Installation Torque Recommended in-lb275 LBS/in
Physical Attribute - Number of Screws2
PlatedY
Product TypeSPLICE REDUCER
Standards - Industry Standards MetUL467
Sub BrandSPLICER/REDUCER
ApplicationFor Use With Copper And Aluminum Conductors
Connector TypeIn-Line
TypeAMS, Dual Rated
Class CodeB51
Harmonization Code8535909999
Lead Time10 wk
Order Multiple1 EA
Die SizeEEI 11A;Burndy WK840;Burndy 249;Kearney 840;T&B TX;T&B 76
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units240
Each - Number of Sub Packs1
Lowest Level UOMEach
Package - GTIN - Package30781810241029
Package - Pack DescriptionPackage
Package - Total Units10 EA
Package Weight0.000 lb.
Pallet Weight0.000 lb.
NAICS Code332999H303
Certifications
- Buy American Compliant
- No
- UL Listed Direct Burial
- No
CSA ApprovedYes
