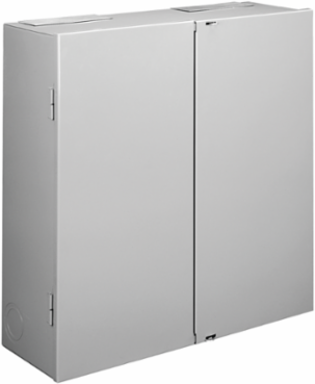

nVent Hoffman AMC363612R Metering Cabinet, 36x36x12 Inch, Gray Steel, NEMA Type 1, IP30
- MPN: AMC363612R
- UPC: 783510137885
- PPN: HOF-AMC363612R
- UNSPSC: 39121324
CAD
$434.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Metering Cabinet Type 1 protects transformers and instrument assemblies in indoor applications. This Metering Cabinet Type 1, AMC363612R item measures 36x36x12 inches with a material of Steel colored Gray.
Features
- Gland plates on top of two-door enclosure for meter connection
- Hinged door with pull latch and provision for padlocking
- Mounting holes in back
Documentation & Downloads
Specifications
Additional
| Material | Steel |
|---|---|
| Width (W) | 914 mm |
| Depth (D) | 305 mm |
| Thickness (T) | 1.9 mm |
| NEMA Rating | Type 1 Indoor, electrical protection |
| Door Type | Double Door |
| Color Code | ANSI 61 |
| Steel Gauge | 14 |
| Mounting | Mounting holes in back |
| Accessory | Gland plates on top for meter connection |
| Size | 36.00 x 36.00 x 12.00 in |
|---|---|
| Height (H) | 914 mm |
| Panel Size (D x E) | 806 x 806 mm |
| Protection Rating | NEMA Type 1 |
| IP Rating | IP30 |
| Color | Gray |
| Finish | Powder Coated (ANSI 61 gray polyester powder paint) |
| Weight | 137 lb |
| Locking Provision | Provision for padlocking |
| BABA | Contact Manufacturer |
