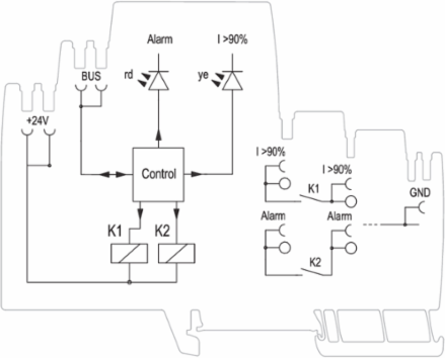

Weidmuller 2081890000 Alarm Module 24V DC, PUSH IN Connection, 12.2mm Width, 30mA Current
- MPN: 2081890000
- PPN: WDM-2081890000
CAD
$63.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Alarm module, 24 V DC
Documentation & Downloads
Specifications
General Data
| Conformal coating | No |
|---|---|
| Operating temperature | -25 °C...55 °C |
| Surge protection input, bus | Suppressor diode |
| Control inputs | No |
|---|---|
| Protection degree | IP20 |
| Surge voltage category | III |
Probability Of Failure
| MTTF | 550 Years |
|---|
Signalling
| Floating contact | Yes |
|---|---|
| Status relay (max. load) | Alarm (24 V / 0.1 A), I > 90 % (24 V / 0,1 A) |
| Yellow LED | Current > 90% Inom (flashing) |
| Red LED | Alarm |
|---|---|
| Transistor output, positive-switching | Pre-warning, Alarm |
Approvals
| Approvals | CE, CULUS, TUEV |
|---|---|
| UL File Number Search | E258476 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 12.2 mm |
|---|---|
| Height | 125 mm |
| Depth | 96.5 mm |
| Net weight | 56 g |
| Width (inches) | 0.48 inch |
|---|---|
| Height (inches) | 4.921 inch |
| Depth (inches) | 3.799 inch |
Input
| Current consumption (full load) | 30 mA |
|---|---|
| DC input voltage range | 18…30 V DC |
| Rated input voltage | 24 V DC |
| max. admissible residual ripple at the input | 100 mVpp |
| Current consumption (idle) | 25 mA |
|---|---|
| Input fuse (internal) | No |
| Surge protection | Suppressor diode |
Classifications
| ETIM 6.0 | EC002057 |
|---|---|
| eClass 9.0 | 27-37-10-16 |
| eClass 10.0 | 27-37-10-16 |
| ETIM 7.0 | EC002057 |
|---|---|
| eClass 9.1 | 27-37-10-16 |
Output
| Connection system | PUSH IN |
|---|
| Surge protection | Suppressor diode |
|---|
Connection Data (Signal)
| Wire connection cross-section, flexible (signal), max. | 2.5 mm² |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Surge voltage category | III |
|---|
Connection Data (Output)
| Conductor cross-section, AWG/kcmil , max. | 12 |
|---|---|
| Conductor cross-section, flexible , max. | 2.5 mm² |
| Conductor cross-section, rigid , max. | 2.5 mm² |
| Connection system | PUSH IN |
| Screwdriver blade | 0.6 x 3.5 |
| Conductor cross-section, AWG/kcmil , min. | 26 |
|---|---|
| Conductor cross-section, flexible , min. | 0.14 mm² |
| Conductor cross-section, rigid , min. | 0.14 mm² |
| Number of terminals | 4 (2 x NO) |
Temperatures
| Operating temperature, max. | 55 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25 °C...55 °C |
| Operating temperature, min. | -25 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E258476 |
|---|
