Weidmuller 2491280000 Electronic Load Monitor 2A 24V DC, IP20, Surge Protection
- MPN: 2491280000
- PPN: WDM-2491280000
CAD
$93.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

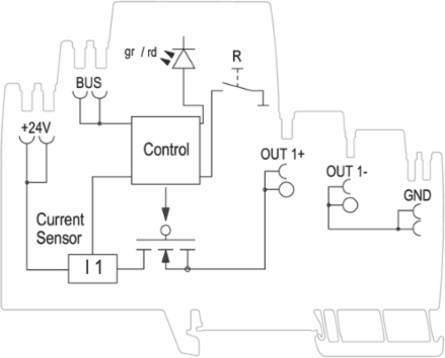

Electronic load monitoring, 2.00 A, 24 V DC
Documentation & Downloads
Specifications
General Data
- Conformal coating
- No
- Operating temperature
- -25 °C...55 °C
- Power loss, nominal load
- 592 mW
- Relay to activate the output
- No
- Surge voltage category
- III
Function keyActivation time < 3s, Reset, ON
Power loss, idling444 mW
Protection degreeIP20
Surge protection input, output, busSuppressor diode
Probability Of Failure
- MTTF
- 350 Years
Signalling
- LED green
- Operation (failure-free)
Red LEDLoad monitoring has disconnected, Load monitoring has triggered (flashing), Internal error (rapid flashing)
Approvals
- Approvals
- CE, cURus, TUEV
- UL File Number Search
- E258476
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 125 mm
- Depth
- 96.5 mm
- Net weight
- 40 g
Width (inches)0.24 inch
Height (inches)4.921 inch
Depth (inches)3.799 inch
Rated Data Ul
- Certificate No. (cURus)
- E258476
Input
- Current consumption (full load)
- IOUT +30 mA
- DC input voltage range
- 18…30 V DC
- Rated input voltage
- 24 V DC
- max. admissible residual ripple at the input
- 100 mVpp
Current consumption (idle)25 mA
Input fuse (internal)Yes
Surge protectionSuppressor diode
Classifications
- ETIM 6.0
- EC002057
- eClass 9.0
- 27-37-10-16
- eClass 10.0
- 27-37-10-16
ETIM 7.0EC002057
eClass 9.127-37-10-16
Output
- Capacitive load
- 4.700 µF
- Rated current
- 2 A
- Switch-on delay
- 1 s
- adjustable rated current
- No
Connection systemPUSH IN
Surge protectionSuppressor diode

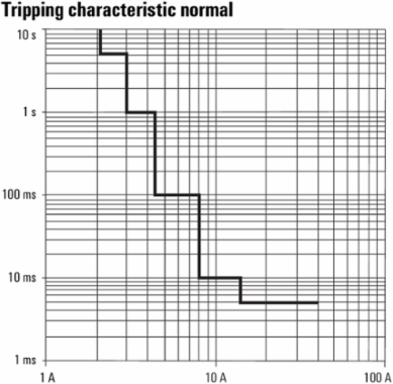

Triggering characteristicsee characteristic curve
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Surge voltage category
- III
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Connection system
- PUSH IN
- Screwdriver blade
- 0.6 x 3.5
Conductor cross-section, AWG/kcmil , min.26
Conductor cross-section, flexible , min.0.14 mm²
Conductor cross-section, rigid , min.0.14 mm²
Number of terminals2 (+ / -)
Temperatures
- Operating temperature, max.
- 55 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25 °C...55 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
