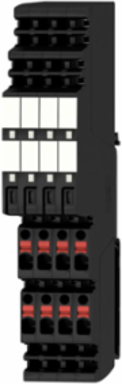

Weidmuller 2080750000 maxGUARD Electronic Load Monitor 24V DC, 4.921 Inch Height, 96.5 mm Depth
- MPN: 2080750000
- PPN: WDM-2080750000
CAD
$217.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

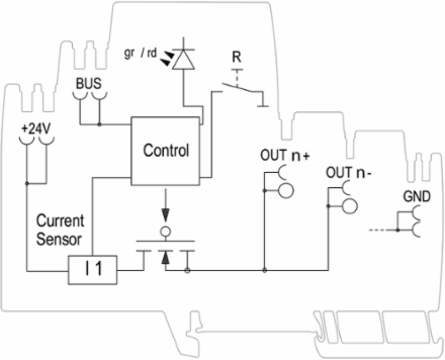

Description
Electronic load monitoring, 24 V DC
Documentation & Downloads
Specifications
General Data
| Conformal coating | No |
|---|---|
| Operating temperature | -25 °C...55 °C |
| Relay to activate the output | No |
| Surge voltage category | III |
| Function key | Activation time < 3s, Reset, ON |
|---|---|
| Protection degree | IP20 |
| Surge protection input, output, bus | Suppressor diode |
Probability Of Failure
| MTTF | 130 Years |
|---|
Signalling
| LED green | Operation (failure-free) |
|---|
| Red LED | Load monitoring has disconnected, Load monitoring has triggered (flashing), Internal error (rapid flashing) |
|---|
Approvals
| Approvals | CE, CULUS, EAC, TUEV |
|---|---|
| UL File Number Search | E258476 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 24.4 mm |
|---|---|
| Height | 125 mm |
| Depth | 96.5 mm |
| Net weight | 104 g |
| Width (inches) | 0.961 inch |
|---|---|
| Height (inches) | 4.921 inch |
| Depth (inches) | 3.799 inch |
Input
| Current consumption (full load) | 4x IOUT +45 mA |
|---|---|
| DC input voltage range | 18…30 V DC |
| Rated input voltage | 24 V DC |
| max. admissible residual ripple at the input | 100 mVpp |
| Current consumption (idle) | 35 mA |
|---|---|
| Input fuse (internal) | Yes |
| Surge protection | Suppressor diode |
Classifications
| ETIM 6.0 | EC002057 |
|---|---|
| eClass 9.0 | 27-37-10-16 |
| eClass 10.0 | 27-37-10-16 |
| ETIM 7.0 | EC002057 |
|---|---|
| eClass 9.1 | 27-37-10-16 |
Output
| Capacitive load | 10,000 µF |
|---|---|
| Rated current (per channel) | 2 A |
| Switch-on delay | 1 s |
| adjustable rated current | No |
| Connection system | PUSH IN |
|---|---|
| Surge protection | Suppressor diode |

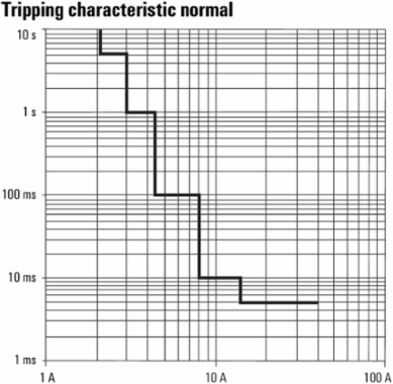

| Triggering characteristic | see characteristic curve |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Surge voltage category | III |
|---|
Connection Data (Output)
| Conductor cross-section, AWG/kcmil , max. | 12 |
|---|---|
| Conductor cross-section, flexible , max. | 2.5 mm² |
| Conductor cross-section, rigid , max. | 2.5 mm² |
| Connection system | PUSH IN |
| Conductor cross-section, AWG/kcmil , min. | 26 |
|---|---|
| Conductor cross-section, flexible , min. | 0.14 mm² |
| Conductor cross-section, rigid , min. | 0.14 mm² |
| Screwdriver blade | 0.6 x 3.5 |
Temperatures
| Operating temperature, max. | 55 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25 °C...55 °C |
| Operating temperature, min. | -25 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E258476 |
|---|
