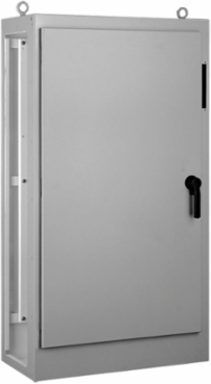

nVent Hoffman AMOD72X7818FTC Modular Disconnect Enclosure 72.12x78.50x18.12 Inch, Steel, NEMA 12
nVent Hoffman AMOD72X7818FTC Modular Disconnect Enclosure 72.12x78.50x18.12 Inch, Steel, NEMA 12
- MPN: AMOD72X7818FTC
- UPC: 783510209292
- PPN: HOF-AMOD72X7818FTC
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Heavy duty enclosure that can be bayed together designed for indoor industrial use. This Modular Disconnect Enclosure Type 12, AMOD72X7818FTC item measures 72.12x78.50x18.12 inches with material of Steel colored Gray.
Features
- One-Door Disconnect Enclosure (left side open); universal cutout on right flange provides mounting for most disconnect operators by using operator adapters (*See footnote)
- Right side is closed since disconnect operator cannot be obscured by a door; primary door is hinged on left; defeater on primary door requires a screwdriver to open; primary door activates mechanical interlock which prevents secondary doors from being opened first; doors may be closed in any order; interlock is furnished
- Two-Door Disconnect Enclosure (left side open); universal cutout on right flange provides mounting for most disconnect operators by using operator adapters (*See footnote)
- Defeater on primary door requires a screwdriver to open; primary door activates mechanical interlock which prevents secondary doors from being opened first; doors may be closed in any order
- Right side is closed; primary door is right-hand door; both doors hinged on left.
- Removable centerpost permits easy panel installation; interlock is furnished
- One-Door secondary Enclosure (both sides open); door hinged on left; interlock is furnished
- Two-Doorsecondary Enclosure (both sides open); right-hand door hinged on right and left-hand door hinged on left; interlock is furnished
- Removable centerpost permits easy panel installation
- Seams are continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Data pocket is high-impact thermoplastic
- Oil-resistant door gasket
- Panel supports
- Removable .127-in. thick steel panels mount on collar studs
- Bonding provision on door
- Mechanical interlock standard on each enclosure; parts required to connect interlock system between adjacent enclosures are provided
- Interlock rods are furnished with enclosures; purchase gasket kits and end plate separately
- Models available with panel include painted panel; conductive panel sold separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,994
- Protection Rating
- NEMA Type 12
- Color
- Gray
- Thickness (T)
- 3.04
- Weight
- 968
- Material
- Steel
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)1,832
Depth (D)460
FinishPowder Coated
Color CodeANSI 61
IP RatingIP65
Panel IncludedYes
Size72.12x78.50x18.12 in
