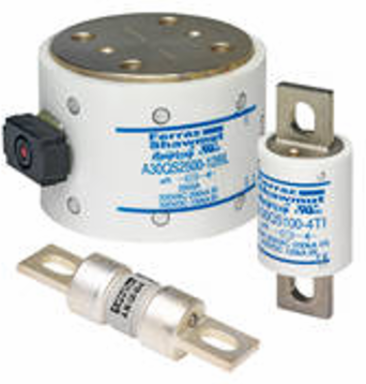

Mersen A30QS75-4L Amp-Trap High-Speed Fuse 300VAC 300VDC 1-4500A
- MPN: A30QS75-4L
- UPC: 782001141158
- PPN: FER-A30QS75-4L
CAD
$254.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
A30QS Amp-trap Semiconductor Protection fuses are intended for the protection of Power Semiconductors such as Diodes, Phase Control SCR's and other power Semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors
Features
- 300VAC and 300VDC rated
- Choice of mounting types helps in equipment design
- Controlled arc Voltage reduces stress to circuit components during fuse clearing.
- Low I 2 t minimizes damage to protected component on short circuit.
Specifications
Product Details
| Standards | UL Recognized Component Guide JFHR2 Some Ratings RoHS Compliant |
|---|---|
| Body Style | Cylindrical Non Rejection Cylindrical With Blades Cylindrical Hockey Puck |
| Body Material | Ceramic GMG |
| CE conformity | Consult Technical Services |
| Connection Terminal Type | Ferrule Blade |
| AC Voltage | 300 VAC |
| I.R DC | 100 kA |
| ROHS Compliant | Consult Technical Services |
| Ampere Range | 1 to 4500 A |
| Speed / Characteristic | High-Speed |
|---|---|
| I.R. AC | 200 kA |
| Materials Contact | Tin-plated Brass Silver-Plated Copper Silver-Plated Brass |
| Lead Free | Consult Technical Services |
| UL Certification | E60314 JFHR2.E60314 |
| DC Voltage | 300 VDC |
| Mounting | Clip Bolted |
| Applications | Protection of AC/DC drives, UPS and other equipment of 300 volts or less |
