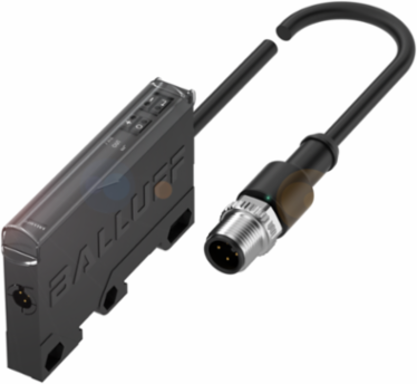

Balluff BAE SA-CS-026-YP-BP00,3-GS04 Capacitive Sensor Amplifier, 10.5 x 45 x 75.5 mm, IP40
- MPN: BAE SA-CS-026-YP-BP00,3-GS04
- PPN: BAL-BAE00LA
CAD
$304.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Balluff capacitive sensor amplifier is designed for precision and reliability in various industrial applications. With its compact dimensions of 10.5 x 45 x 75.5 mm and robust PBT housing, this device is built to withstand challenging environments, featuring an IP40 rating for protection against dust and moisture. It offers versatile connectivity options with a 0.30 m cable and M12x1 connector, and operates within a wide voltage range of 15 to 30 VDC. The amplifier supports both voltage and current analog outputs, along with programmable on/off delay functions, making it an ideal choice for automation and control systems. With a temperature tolerance of -10 to 70 °C and a switching frequency of up to 100 Hz, this sensor amplifier is engineered for optimal performance in demanding settings.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 15...30 VDC
- Switching Output
- PNP/NPN NO/NC programmable
- On/Off Delay
- Programmable
- Connection
- Cable with connector, M12x1, 0.30 m, PUR
- IP Rating
- IP40
- Approval/Conformity
- CE, UKCA, cULus, WEEE
Analog OutputVoltage/Current 0–10 V / 4–20 mA
Switching Frequency100 Hz
Dimensions10.5 x 45 x 75.5 mm
MaterialPBT
Ambient Temperature-10 to 70 °C
Country of OriginGermany
