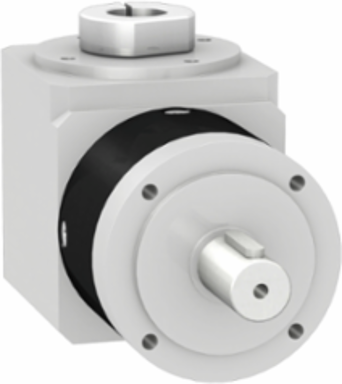

Schneider Electric GBY060020K Angular Gearbox 60mm, Reduction 20:1, Torque 44N.m, Weight 1.9kg
- MPN: GBY060020K
- PPN: SCH-GBY060020K
CAD
$1191.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for superior motion control, the angular gearbox from Schneider Electric features a compact design with a 60mm profile and a robust reduction ratio of 20:1. This innovative component is capable of delivering an impressive torque of 44N.m, making it an ideal choice for applications requiring precise and efficient power transmission. Weighing just 1.9kg, this gearbox is suitable for various automation and control setups, providing reliability and performance that meet the demanding needs of modern servo drive systems. Durable and thoughtfully designed, it plays a crucial role in enhancing the overall efficiency of your motion control applications.
Documentation & Downloads
Specifications
Additional
- Continuous Output Torque
- 44 N.m at 100 rpm 30 b0C
- Maximum Axial Force
- 450 N at 100 rpm, 30000 h at 30 b0C
- Reduction Ratio
- 20:1
- Torsional Rigidity
- 2.5 N.m/arcmin
- Noise Level
- 70 dB at 1 m, no-load
- Gearbox External Diameter
- 60 mm (2.36 in)
- Shaft Material
- C 45
- Mounting Position
- Any position
- Housing Material
- Black anodized aluminium
- Ambient Operating Temperature
- -25 to 90 b0C (-13 to 194 b0F)
- Net Weight
- 1.9 kg (4.19 lb)
- RoHS Compliance
- Pro-active compliance
- Range Compatibility
- Lexium ILS, Lexium ILE, Lexium SD3, Lexium 62, Lexium 62 ILM, Lexium 52, Lexium 32, Lexium ILA
Maximum Output Torque70 N.m at 100 rpm 30 b0C
Maximum Radial Force340 N at 100 rpm, 30000 h at 30 b0C
Maximum Torsional Backlash18 arc.min
Efficiency92 %
Gear Box TypeStraight teeth
Input Diameter14.0 mm (0.55 in)
Moment of Inertia0.186 kg.cmb2
Housing ColourBlack
LubricationLubricated for life
IP Degree of ProtectionIP54 (shaft output)
Country of OriginGermany (DE)
Warranty18 months
Product CompatibilityBSH 55 mm (types 1,2,3), BRS3, ILE 66 mm (types 1,2), ILA 57 mm (types 1,2), ILS 57 mm (types 1,2,3), SH3, MH3, ILM
