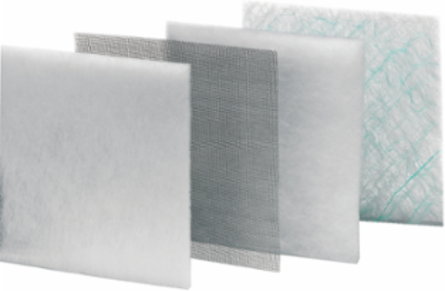

Schneider Electric NSYCAF291M Anti-Insect Filter 291x291mm Cut-Out, Stainless Steel, 8mm Thickness
- MPN: NSYCAF291M
- PPN: SCH-NSYCAF291M
- UNSPSC: 39121324
CAD
$95.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric anti-insect filter is designed to offer effective protection while maintaining air quality in various applications. With a cut-out size of 291x291mm and crafted from durable stainless steel, this filter ensures reliability and long-lasting performance. The 8mm thickness provides robust structural integrity, making it an ideal choice for environments that require both functionality and resilience against insect intrusion. This essential component seamlessly integrates into your electrical installations, ensuring that your systems remain safe and operational.
Features
- G2 M1 synthetic standard filters, Filters for greasy environments G2 M1, G3 M1 synthetic fine filters: 5 units
- For fans and grilles.
- Stainless-steel anti-insect filters: 1 unit
- Filters according to ISO 16890.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|
| Weight | 172 g |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Carbon Footprint Of The Distribution Phase A4 | 0.3408719276117742, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.050722838238631426, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-05-30 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Mounting Location | between enclosure and outlet grille |
| Product Name | ClimaSys CA |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 2 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | cut-out: 280 mm |
| Accessory / Separate Part Destination | outlet grille 336 x 316 mm |
| Customs Code | 7314141000 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 17 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.3 kg CO2 eq., 0.31523458437159046 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 1 kg CO2 eq., 0.9700268147338654 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Material | stainless steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | filter |
| Range | ClimaSys |
| Software Version | v6.2.5-6 |
| Thickness | 8 mm |
| Database Version | 2024-01 |
| Height Nominal | cut-out: 280 mm |
| Accessory / Separate Part Category | thermal management accessory |
| Nbr. Of Units In Pkg. | 1 |
| Cut Out Dimensions | 291 x 291 mm cut-out |
| Functional Unit Description | To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 8 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 1.6768561649558613 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2012014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2012014EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
General Attributes
| Product Or Component Type | filter |
|---|
ETIM
| ETIM 8 | EC002513 |
|---|---|
| ETIM 10 | EC002513 |
| ETIM 9 | EC002513 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
