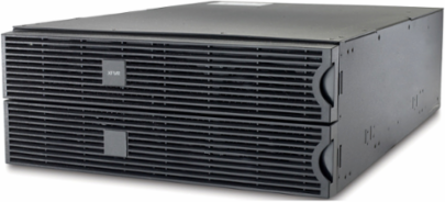

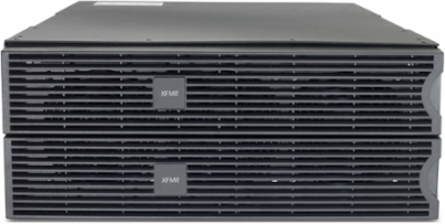

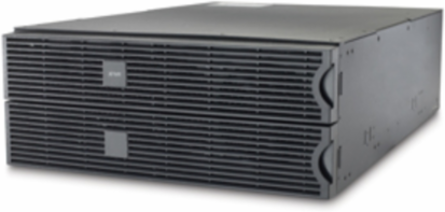

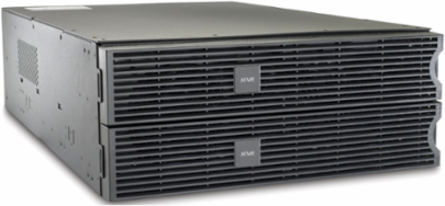

APC APTF10KT01 10KVA 208V/120V Step-Down Transformer, Rack-Mountable, 220.46 lb, 4U Size
- MPN: APTF10KT01
- UPC: 731304242215
- PPN: APC-APTF10KT01
CAD
$4119.40
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This transformer converts 208V input to 120V output. It is designed for use in environments requiring step-down voltage conversion. The unit includes rack mounting brackets, user manual, installtion guide, hardwire panel and documentation CD.
Features

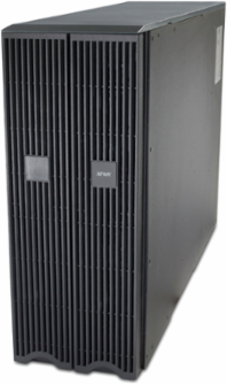

- Rack — Mountable-Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
- Transformer for Step — down or Step-up or Isolation-Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer
- 10kVA step-down transformer converts 208V input to 120V output for low-voltage AC equipment
- Designed for use with APC Smart-UPS for flexible power distribution
- 4U rackmount form factor for integration with standard racks
- Reduces inrush current and avoids UPS oversizing by placing transformer upstream
Documentation & Downloads
Specifications
Additional
| Output Voltage | 120 V, 208 V, 240 V |
|---|---|
| Protection Type | Circuit breaker |
| Input Frequency | 45-65 Hz |
| Power Capacity | 10,000 VA |
| Operating Temperature Range | 32 to 104 °F (0 to 40 °C) |
| Rack Units | 4U |
| Width | 17.01 in (432 mm) |
| Weight | 220.46 lb (100 kg) |
| Mount Position | front |
| Operating Humidity | 0 to 95% |
| Operating Altitude | 0 to 10,000 ft |
| Mercury Free | Yes |
| Approvals | C-tick, CE, CSA, GOST, UL Listed, VDE |
| Input Voltage | 208 V |
|---|---|
| Max Line Current | 60 A |
| Efficiency | 95% |

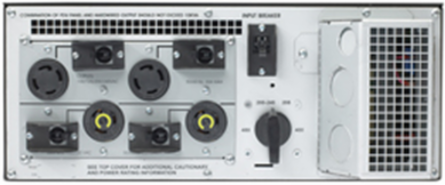

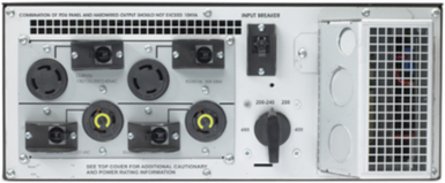

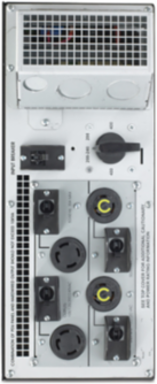

| Number of Power Socket Outlets | 4 (2 NEMA L5-20R, 2 NEMA L14-30R) |
| Storage Temperature Range | -13 to 149 °F (-25 to 65 °C) |
| Height | 6.89 in (175 mm) |
| Depth | 29.49 in (749 mm) |
| Output Connections | Hard Wire 3-wire (2PH + G) 1, Hard Wire 4-wire (2PH+N+G) 1 |
| Product Orientation | lower |
| Storage Humidity | 0 to 95% |
| Storage Altitude | 0 to 50,000 ft |
| RoHS | Compliant with Exemptions |
| Customs Number | 8504320000 |
