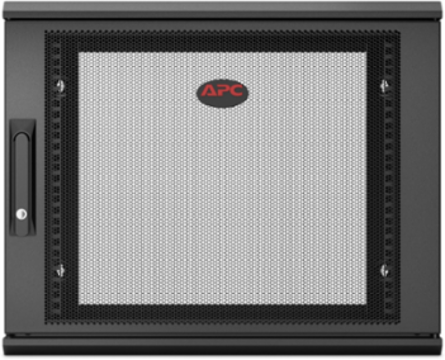

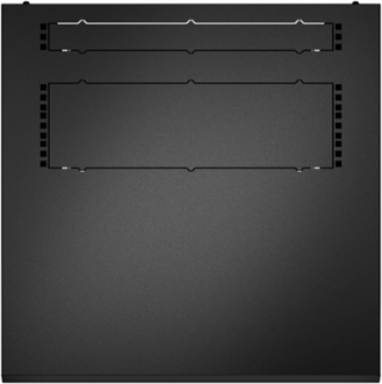

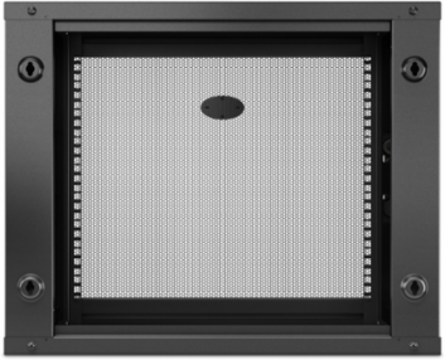

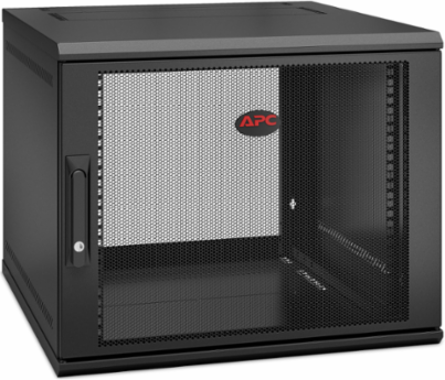

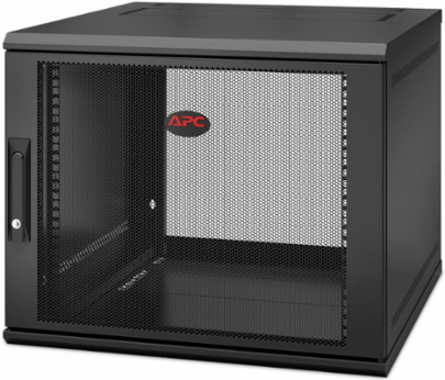

APC AR109SH6 NetShelter 9U Wallmount Rack Enclosure Cabinet 19" Width, 23.62" Depth, 36.80 lb
- MPN: AR109SH6
- UPC: 731304402718
- PPN: APC-AR109SH6
CAD
$907.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ideal for retail, healthcare, and educational facilities, this wall mount rack offers an efficient solution for deploying server and networking equipment for edge computing applications. This rack enclosure is wall mountable, ideal for areas with limited floor space, and is designed specifically for servers and network switches and patch panels. The cabinet's door is reversible and is compatible with APC's Netbotx security upgrade to provide remote access, video surveillance, and environmental monitoring (sold separately). Optional 120V fan tray can be top or bottom mounted (sold separately) Both the top and bottom feature knockouts of 1/2U mounting space for accessories. And several APC Smart-UPS models low-profile provide easy UPS integration and mounting 9U Wall mount cabinet, mounting depth range of 2.87 to 20.8 inches, 200lb weight capacity, 19"" rack width, ships fully assembled, ventilated with accessory integration options, 5 year APC warranty
Features
- NetShelter VX Enclosures ship fully assembled reducing the time required to install equipment.
- Ideal for Network Closets and Server Rooms.
- Efficient and secure edge computing solution when floor space is limited
- Wallmount Rack Enclosure
- 9U, 600mm deep, Max. load 200lb
- Reversible single-hinge door
- Locking swing-handle
- Ventilated
- 1/2U knockouts top/bottom
- Includes hardware
- Fan tray AR8213, Combo handle AR8132A, NetBotz NBRK0750/NBHN0125 are all sold separately
- Ships pre-assembled, 5 year APC warranty
Documentation & Downloads
Specifications
Additional
| Rack Height | 9U |
|---|---|
| Width | 19 in |
| Height | 19.09 in (48.5 cm) |
| Mounting Support | Wall |
| Minimum Mounting Depth | 2.87 in |
| Reach Compliance | Free of SVHC above threshold |
| Country of Origin | Philippines |
| Permanent Permissible Load | 200 lb |
|---|---|
| Depth | 23.62 in (60 cm) |
| Weight | 36.80 lb (16.69 kg) |
| Maximum Mounting Depth | 20.8 in |
| RoHS Compliance | Compliant |
| WEEE Compliance | EU waste disposal compliant |
| Customs Number | 9403200090 |
