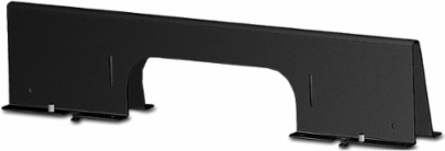

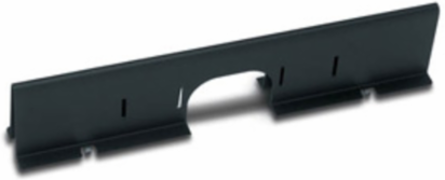

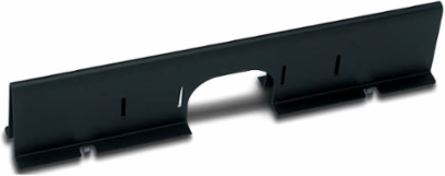

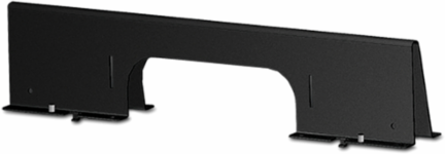

APC AR8163ABLK NetShelter Cable Management Partition, Pass Through, 23.5 Inch x 4.8 Inch x 2.8 Inch
- MPN: AR8163ABLK
- UPC: 731304194859
- PPN: APC-AR8163ABLK
CAD
$123.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

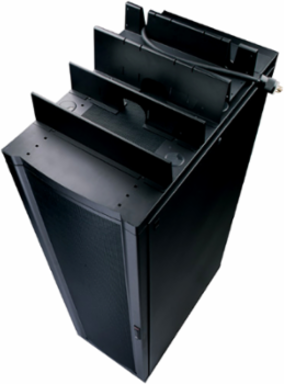

The pass-through Partition allows overhead routing of networking cables on top of the NetShelter enclosures and 4-post racks. Two Partitions attach without tools to the roof in a variety of depths. The pass-through Partition is designed with a cable access hole to facilitate routing cables. Each partition ships with ground studs and one 8 inch/203mm grounding strap.
Features
- Safety protection against electric shock and reduction of EMI emissions. NetShelter Enclosures incorporate a series of ground studs within each enclosure, providing adequate means for grounding all loose sheet metal panels and/or internally rack-mounted equipment.
- Overhead cable troughs and partitions install toollessly on the roof of the enclosure eliminating the need for ceiling mounted or underfloor mounted cable trays. Cable troughs and partitions are designed to manage both power and data cables while maintaining separation.
Documentation & Downloads
Specifications
Additional
| Depth | 2.80 in (7.1 cm) |
|---|---|
| Width | 23.50 in (59.7 cm) |
| Warranty | 24 months |
| WEEE Compliance | EU Waste Collection Compliant |
| Mercury Free | Yes |
| REACH Compliance | Free of SVHC above threshold |
| TakeBack Program | No |
| Carbon Footprint | 8 kg CO2 eq (Total Life cycle) |
| Grounding Strap Length | 8 in (20 cm) |
| Mounting Mode | Not rack-mountable |
| Pass Through | Yes |
| Height | 4.80 in (12.2 cm) |
|---|---|
| Weight | 4.01 lb (1.82 kg) |
| RoHS Compliance | Compliant |
| Toxic Heavy Metal Free | Yes |
| REACH SVHC Free | Yes |
| Customs Number | 7326908688 |
| Product Orientation | No preference |
| Color | Black |
| Number of Cables | 1 |
| Product Type | Cable Management Partition |
