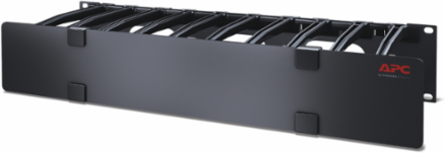

APC AR8606 NetShelter Horizontal Cable Manager, 2U, Black, 19 Inch Width, 6.50 Inch Depth, TAA Compliant
- MPN: AR8606
- UPC: 731304291541
- PPN: APC-AR8606
CAD
$214.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a high-density horizontal cable manager for NetShelter SX enclosures. It is 2U in size and features a single side with a cover. I features cable tie-off and cable access slots in the backplate for front to back cable pass-through.
Features

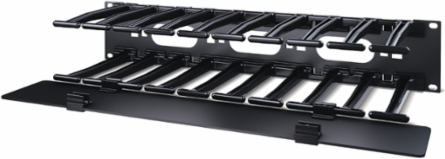

- Covers with snap hinges provide trouble-free access to cables.
- Smooth plastic fingers provide proper bend radius.
- Cable access slots in the backplane provide improved accessibility from the front to the rear of the enclosure for cable routing.
- Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
- Horizontal cable managers include double-sided configuration hardware to install 2 alike horizontal cable managers back-to-back for double-sided applications.
- Features a 2U, 6 inches deep horizontal cable manager for high-capacity cable management
- Includes cable tie-off and access slots for front-to-back cable routing
- Provides double-sided cable management for enhanced organization

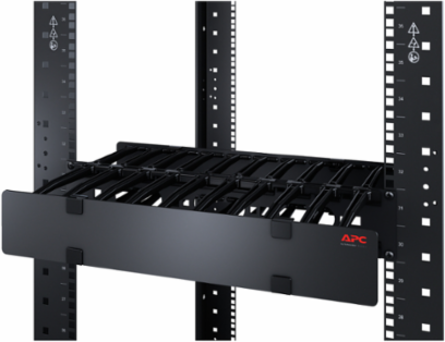

- Can be mounted in front or rear of the rack
Documentation & Downloads
Specifications
Additional
| Approval | TAA Compliant |
|---|---|
| Depth | 6.50 in (16.51 cm) |
| Weight | 2.20 lb (1 kg) |
| Mounting Location | Front, Rear |
| WEEE | EU Waste Collection Compliant |
| Color | Black |
| Width | 19.00 in (48.26 cm) |
|---|---|
| Height | 3.50 in (8.89 cm) |
| Rack Units | 2U |
| RoHS | Compliant |
| Reach | Contains SVHCs above threshold |
