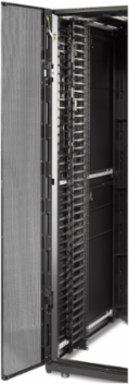

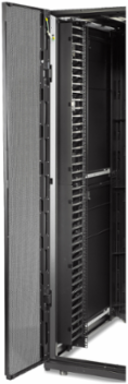

APC AR7580A NetShelter Cable Manager for 42U Rack, Vertical, 70 Inch Height, 3.82 Inch Width, 6.30 Inch Depth
- MPN: AR7580A
- UPC: 731304300816
- PPN: APC-AR7580A
CAD
$689.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NetShelter Cable Management provides a comprehensive selection of accessories to organize power or data cables within a server rack. This vertical cable manager for the NetShelter SX series 42U and 750mm Wide provides maximum U-space coverage. It supports 190 to 250 CAT 6A/CAT 6 data cables per section and 190 CAT 6A per channel section. Easily secure and access cabling with toolless mounting on the backplate for accessories and snap hinge cable retainers. The vertical channels have smooth plastic fingers at 1U increments to allow patch cords to enter and exit in an organized manner. Each kit covers one corner of the enclosure and includes mounting hardware, 6x cable retainers with snap hinges and top securing bracket.
Features
- Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
- Backplates feature multiple holes for toollessly mounting accessories such as cable managers for cable tie-off AR8621 and airflow management brush strips AR7714 to allow cable pass-through while restricting airflow through the openings.
- Dedicated cable managers for each enclosure height 42U, 45U, and 48U, provide the maximum u-space coverage. Optional covers will match cable manager height to provide full coverage over the entire height of the enclosure.
- Secure cabling inside the cable manager with the provided snap hinge cable retainers that open to the left or right for easy access.
- Covers not provided install quickly without tools and include two easy to use latches that allow the cover to open to the left or right. The covers hide the cabling to keep the enclosure space neat for future maintenance and an clean aesthetic.
- Frees up Uspace, improves airflow, and keeps racks tidy
- High capacity (up to 250 CAT 6A/ CAT 6 data cables per section)
- Helps prevent human error with better cable organization
- Easy, toolless mounting
- Compatible with all 42U NetShelter SX 750mm wide models
Documentation & Downloads
Specifications
Additional
| Height | 70 in (177.8 cm) |
|---|---|
| Width | 3.82 in (9.7 cm) |
| Mounting Location | Front, Rear |
| Warranty | 24 months |
| RoHS | Compliant |
| Customs Number | 7326908688 |
| Depth | 6.30 in (16 cm) |
|---|---|
| Weight | 9.02 lb (4.09 kg) |
| Product Certification | TAA compliance |
| Reach | Free of Substances of Very High Concern above threshold |
| WEEE | EU compliant disposal |
| Mounting Mode | Rack-mounted |
