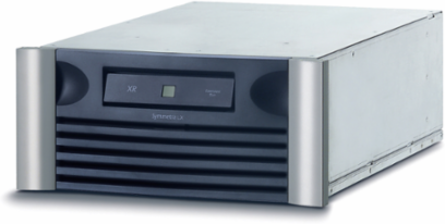

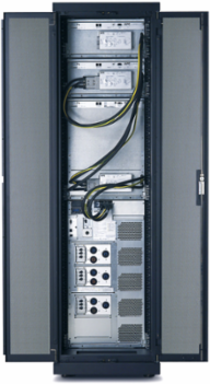

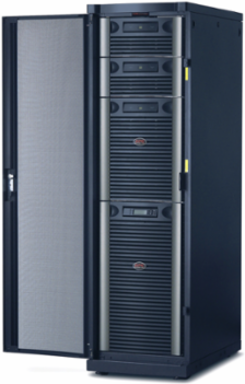

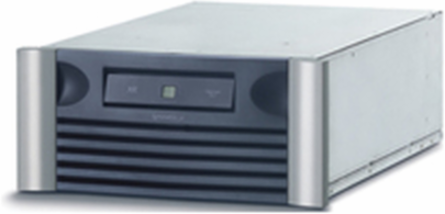

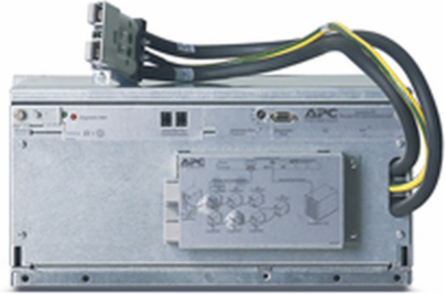

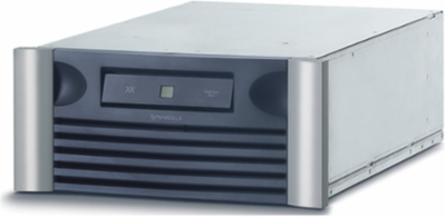

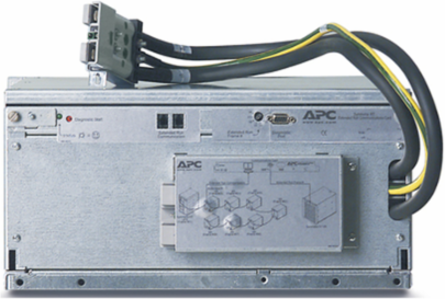

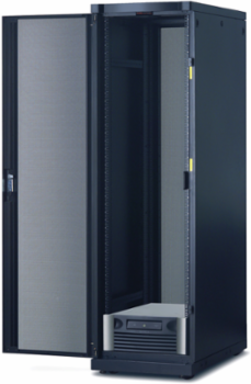

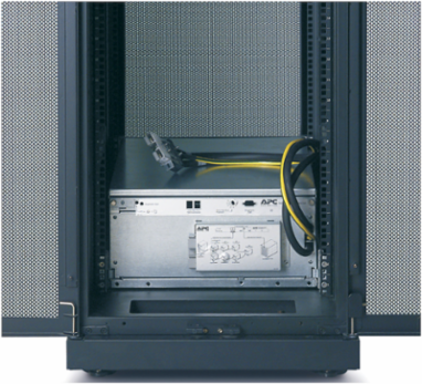

APC SYARMXR3B3 Symmetra LX Extended Run Rack-mount 5U UPS with 3 Hot-swappable Lead-Acid Batteries
- MPN: SYARMXR3B3
- UPC: 731304740032
- PPN: APC-SYARMXR3B3
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The APC Symmetra LX Extended Runtime Battery is equipped with three SYBT5 battery modules, operating at 208V This unit is designed for high availability and scalability, making it ideal for critical power applications. It features a 5U rack-mountable form factor, ensuring efficient use of space in data centers. It includes lead-acid batteries from Panasonic. The unit supports a wide operating temperature range from 0 to 40°C and can function at altitudes up to 10,000 feet.
Features
- Battery modules connected in parallel — Delivers higher availability through redundant batteries.
- Hot — swappable batteries-Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Plug — and-Play external batteries-Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- User — replaceable batteries-Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Modular design — Increases adaptability with an open architecture configurable to any IT environment.
- Comes pre-populated with (3) SYBT5 battery modules.
- Can daisy chain multiple XR frames for even more runtime.
- Lead-acid battery type.
- 2-year repair or replace warranty.
Documentation & Downloads
Specifications
Additional
| Voltage | 208V |
|---|---|
| Rack Unit | 5U |
| Width | 18.58 in (472 mm) |
| Weight | 251.53 lb (114.09 kg) |
| Battery Type | Lead-Acid battery |
|---|---|
| Height | 8.46 in (215 mm) |
| Depth | 27.01 in (686 mm) |
| Compliance | CSA, RoHS Compliant with Exemptions |
