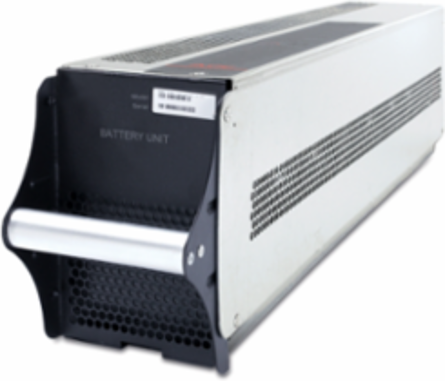

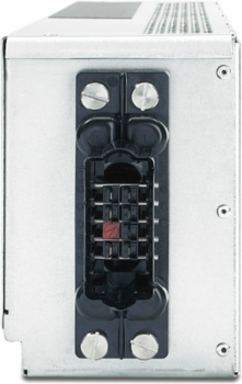

APC SYBTU2-PLP Symmetra PX 9Ah Battery Unit, 4.21 Inch Width, 55.56 lb Weight

  • MPN: SYBTU2-PLP
  • UPC: 731304242529
  • PPN: APC-SYBTU2-PLP

CAD

$1194.03

/ EA

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

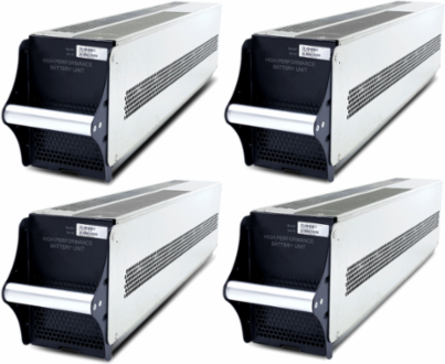

For Symmetra PX 100, it is recommended to replace all four batteries in a row at the same time to ensure optimal runtime. If you are ordering this battery unit for a Symmetra PX 100, you must order battery units in multiples of 2 and you must replace string positions A+B or C+D, as the batteries are connected in pairs. The batteries in each half string must be from the same manufacturer. For Symmetra PX 250/500, it is recommended to replace all six batteries in a row at the same time to ensure optimal runtime. If you are ordering this battery unit for a Symmetra PX 250/500, you must order battery units in multiples of 3 and you must replace the batteries in string position A+B+C or D+E+F, as they are connected in pairs. The batteries in each half string must be from the same manufacturer. Network services help ensure operation continuity even in case of connection breakdown.

Features

  • Swappable batteries — Allows quick addition of runtime capacity or replacement of existing battery modules. Installed modules are automatically recognized by the system.
  • Battery replacement without tools — Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
  • Battery modules connected in parallel — Delivers higher availability through redundant batteries.
  • Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.

Documentation & Downloads

Specifications

Additional

Capacity9 Ah
Storage Temperature Range5-104 °F (-15-40 °C)
Operating Altitude0-3333 ft
Height6.26 in (15.9 cm)
Weight55.56 lb (25.2 kg)
Mounting ModeNot rack-mountable
RoHSCompliant
Customs Number8507208091
Operating Temperature Range32-104 °F (0-40 °C)
Relative Humidity Range0-95 %
Storage Altitude0-15000 ft
Depth27.56 in (70 cm)
Width4.21 in (10.7 cm)
ApprovalsCE
ColorBlack
Symmetra PX 9Ah Battery Unit, 4.21 Inch Width, 55.56 lb Weight
