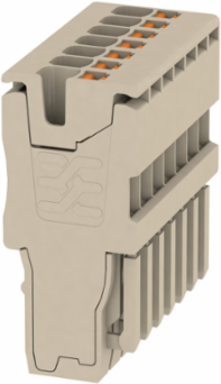

Weidmuller 2482400000 Plug, 1.5 mm2, 500 V, 17.5 A, PUSH IN Technology, Dark Beige
- MPN: 2482400000
- PPN: WDM-2482400000
CAD
$10.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Plug, 1.5 mm², 500 V, 17.5 A, dark beige
Documentation & Downloads
Specifications
Approvals
- Approvals
- CSA, cURus
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 24.5 mm
- Height
- 14 mm
- Depth
- 31.15 mm
- Net weight
- 8.16 g
Width (inches)0.965 inch
Height (inches)0.551 inch
Depth (inches)1.226 inch
Csa Rating Data
- Certificate No. (CSA)
- 200039-70089609
- Current size C (CSA)
- 13 A
- Voltage size B (CSA)
- 300 V
- Voltage size D (CSA)
- 600 V
- Wire cross section min. (CSA)
- 26 AWG
Current size B (CSA)13 A
Current size D (CSA)5 A
Voltage size C (CSA)300 V
Wire cross section max. (CSA)14 AWG
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Classifications
- ETIM 6.0
- EC002848
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC002848
eClass 9.127-14-11-92
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C

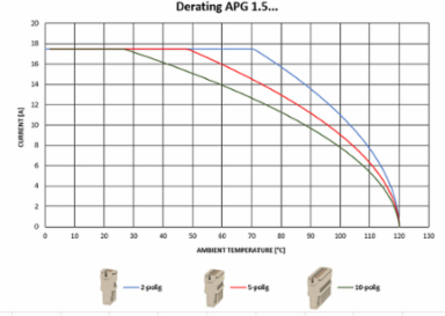

Rating Data
- Rated cross-section
- 1.5 mm²
- Rated current
- 17.5 A
- Volume resistance according to IEC 60947-7-x
- 1.83 mΩ
Rated voltage500 V
Current at maximum wires17.5 A
Power loss in accordance with IEC 60947-7-x0.56 W
Conductors For Clamping (Rated Connection)
- Blade size
- 0.4 x 2.0 mm
- Clamping range, min.
- 0.14 mm²
- Connection direction
- top
- Number of connections
- 7
- Type of connection
- PUSH IN
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Clamping range, max.1.5 mm²
Connection cross-section, stranded, max.1.5 mm²
Gauge to IEC 60947-1A1
Stripping length10 mm
Wire connection cross section AWG, max.AWG 14
Wire connection cross section, finely stranded, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire connection cross-section, solid core, max.1.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 26 AWG
- Conductor size Field wiring min. (cURus)
- 26 AWG
- Current size C (cURus)
- 13 A
- Voltage size B (cURus)
- 300 V
- Voltage size D (cURus)
- 600 V
Conductor size Factory wiring max. (cURus)14 AWG
Conductor size Field wiring max. (cURus)14 AWG
Current size B (cURus)13 A
Current size D (cURus)5 A
Voltage size C (cURus)300 V
