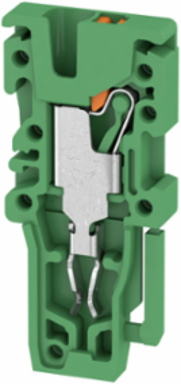

Weidmuller 2482300000 Green 1.5 mm2 Push In Plug, 500 V, 17.5 A
- MPN: 2482300000
- PPN: WDM-2482300000
CAD
$2.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Plug, 1.5 mm², 500 V, 17.5 A, green
Documentation & Downloads
Specifications
Approvals
| Approvals | CSA, cURus |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 3.5 mm |
|---|---|
| Height | 14 mm |
| Depth | 31.15 mm |
| Net weight | 1.146 g |
| Width (inches) | 0.138 inch |
|---|---|
| Height (inches) | 0.551 inch |
| Depth (inches) | 1.226 inch |
Csa Rating Data
| Certificate No. (CSA) | 200039-70089609 |
|---|---|
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 14 AWG |
| Voltage size B (CSA) | 300 V |
|---|---|
| Voltage size D (CSA) | 600 V |
| Wire cross section min. (CSA) | 26 AWG |
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | green |
|---|
Classifications
| ETIM 6.0 | EC002848 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC002848 |
|---|---|
| eClass 9.1 | 27-14-11-92 |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |

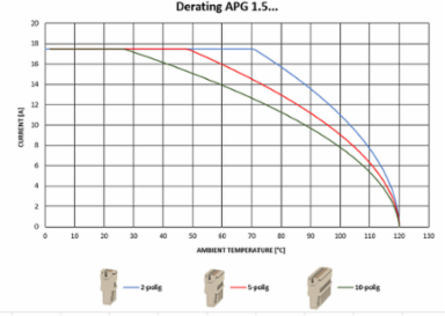

Rating Data
| Rated cross-section | 1.5 mm² |
|---|---|
| Rated current | 17.5 A |
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
| Rated voltage | 500 V |
|---|---|
| Current at maximum wires | 17.5 A |
| Power loss in accordance with IEC 60947-7-x | 0.56 W |
Conductors For Clamping (Rated Connection)
| Blade size | 0.4 x 2.0 mm |
|---|---|
| Clamping range, min. | 0.14 mm² |
| Connection direction | top |
| Number of connections | 1 |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Clamping range, max. | 1.5 mm² |
|---|---|
| Connection cross-section, stranded, max. | 1.5 mm² |
| Gauge to IEC 60947-1 | A1 |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 1.5 mm² |
Ul Rating Data
| Certificate No. (cURus) | E60693 |
|---|---|
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Voltage size C (cURus) | 300 V |
| Conductor size Factory wiring max. (cURus) | 14 AWG |
|---|---|
| Conductor size Field wiring max. (cURus) | 14 AWG |
| Voltage size B (cURus) | 300 V |
| Voltage size D (cURus) | 600 V |
