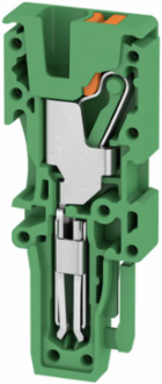

Weidmuller 1513930000 Plug 2.5 mm2, 800 V, 24 A, Green, PUSH IN Technology
- MPN: 1513930000
- PPN: WDM-1513930000
CAD
$2.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Plug, 2.5 mm², 800 V, 24 A, Number of poles: 1, green
Documentation & Downloads
Specifications
Approvals
- Approvals
- BURVER, CSA, cURus, DNV GL
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 16.5 mm
- Depth
- 42.5 mm
- Net weight
- 3.31 g
Width (inches)0.201 inch
Height (inches)0.65 inch
Depth (inches)1.673 inch
Csa Rating Data
- Certificate No. (CSA)
- 200039-70089609
- Voltage size C (CSA)
- 600 V
- Wire cross section max. (CSA)
- 12 AWG
Voltage size B (CSA)600 V
Voltage size D (CSA)600 V
Wire cross section min. (CSA)28 AWG
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourgreen
Classifications
- ETIM 6.0
- EC002848
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC002848
eClass 9.127-14-11-92
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C

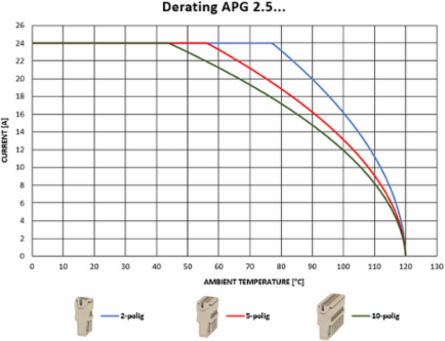

Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Standards
- IEC 61984
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage800 V
Current at maximum wires24 A
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage8 kV
Surge voltage categoryIII
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.14 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Gauge to IEC 60947-1
- A3
- Stripping length
- 10 mm
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 2.5 mm²
Clamping range, max.2.5 mm²
Connection cross-section, stranded, max.2.5 mm²
Connection directiontop
Number of connections1
Type of connectionPUSH IN
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 28 AWG
- Conductor size Field wiring min. (cURus)
- 28 AWG
- Voltage size C (cURus)
- 600 V
Conductor size Factory wiring max. (cURus)12 AWG
Conductor size Field wiring max. (cURus)12 AWG
Voltage size B (cURus)600 V
Voltage size D (cURus)600 V
