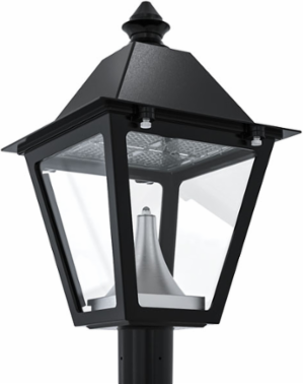

RAB 081591 Area Light LED CCM-LED41 41W 120-277V 4000K Type IV Distribution Sand Textured Black Finish Dimmable Clear Lens
- MPN: 081591
- UPC: 061184815910
- PPN: RAB-081591
CAD
$749.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Coachman Series has a traditional, architectural look with the latest LED technology including options for beam distributions and lumen adjustability in an easy-to-install design.
Features
- Cast Aluminum housing with f1 rated UV resistant clear/frosted lens. Spun aluminum reflector for widespread, even illumination. Designed to protect fixture from insect and water ingress.
- Driver has Short Circuit & Open Circuit Protection and temperature foldback. Temperature foldback circuit reduces the output current to ensure that the LED temperature does not exceed the set value, protecting the LED from failure. Driver complies with UL8750, Class 2 output. Electromagnetic Compliance – FCC Title 47 Part 15 Class A.
- Available in T3, T4 or T5 beam distributions. Optics are rated IP65.
- Mounts a 2-3/8” to 3” OD vertical tenon. Custom pole adaptor options available. Fixture can also be wall mounted through a Decorative Wall Mount bracket sold separately.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 26.5 Inches
- Lumens
- 4877
- Efficacy
- 117.9
- THD
- 11.7
- CRI
- 72
- LED life
- 100,000 Hrs
- Materials
- Die Cast Aluminum
- Finish
- Sand Textured Black
Width16.5 Inches
Depth17 Inches
Watts41.4
Operating Temperature-40C to +40C
PF0.99
Surge Protection2.5kV
Lensf1 Rated UV resistant Clear/Frosted Polycarbonate Lens
Beam DistributionType IV Distribution
DimmableYes
