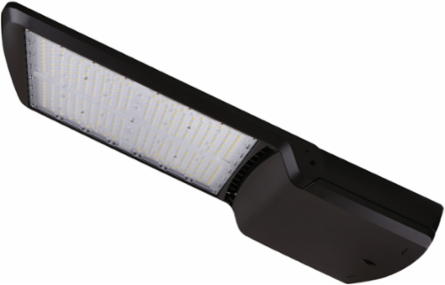

RAB 081222 Area Light LED HELIX1-LED150 150W 120-277V 5000K Type III Distribution Matte Black Finish Dimmable with Photocell
- MPN: 081222
- UPC: 061184812223
- PPN: RAB-081222
CAD
$517.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The HELIX-LED is a sleek, modern area light with Type 3, Type 4 and Type 5 distribution options available. Intelligently designed, this fixture provides superior lighting performance and significant energy savings over traditional fixtures. The HELIX-LED is an ideal fixture for schools, basketball courts, and commercial plazas.
Features
- Fixture can be tilted with any mounting option to direct light where needed.
- 10kV surge protection built into the driver.
- High performance optics designed for zero uplight (U0)
- Rotating optics in 90° segments to redirect light in any direction (factory installed)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 6.3 Inches
- Lumens
- 21318
- Efficacy
- 143
- THD
- 0.15
- CRI
- 70
- Lens
- Clear Polycarbonate
- CCT
- 5K
- Beam Distribution
- Type III Distribution
- Dimmable
- Yes
Width13.2 Inches
Depth29.5 Inches
Watts149
Operating Temperature-40C to +50C
PF> 0.9
Surge Protection10kV
MaterialsDie Cast Aluminum
Voltage120-277V
FinishMatte Black
Lighting ControlsPhotocell
