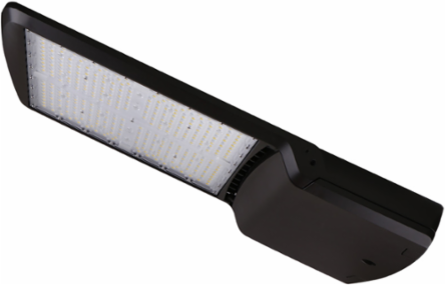

RAB 081475 Area Light LED HELIX2-LED240 240W 120-277V 4000K Type III Distribution Bronze Finish Dimmable with Photocell
- MPN: 081475
- UPC: 061184814753
- PPN: RAB-081475
CAD
$462.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The HELIX-LED is a sleek, modern area light with Type 3, Type 4 and Type 5 distribution options available. Intelligently designed, this fixture provides superior lighting performance and significant energy savings over traditional fixtures. The HELIX-LED is an ideal fixture for schools, basketball courts, and commercial plazas.
Features
- Fixture can be tilted with any mounting option to direct light where needed.
- 10kV surge protection built into the driver.
- High performance optics designed for zero uplight (U0)
- Rotating optics in 90° segments to redirect light in any direction (factory installed)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 6.3 Inches
- Lumens
- 35175
- Efficacy
- 143
- THD
- 0.15
- CRI
- 70
- Lens
- Clear Polycarbonate
- CCT
- 4K
- Beam Distribution
- Type III Distribution
- Dimmable
- Yes
Width15.9 Inches
Depth34.3 Inches
Watts341
Operating Temperature-40C to +50C
PF> 0.9
Surge Protection10kV
MaterialsDie Cast Aluminum
Voltage120-277V
FinishBronze
Lighting ControlsPhotocell
