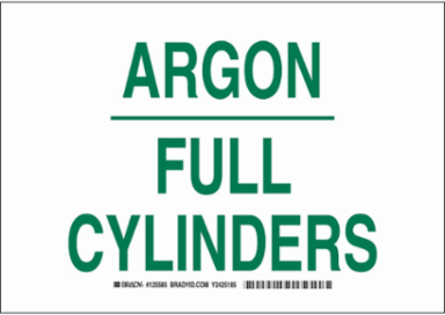

Brady 125585 Argon Full Cylinders Sign, 7 Inch H x 10 Inch W, Outdoor Use, Polyester, Abrasion-Resistant
- MPN: 125585
- UPC: 754473732882
- PPN: BRD-125585
- UNSPSC: 55121704
CAD
$13.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
Features
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
- Cold temperature adhesive allows the signage to be applied at 0°F (-18°C)
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Color
- Green on White
- Enables Industry Compliance
- Globally Harmonized System (GHS); NFPA 704; OSHA 1910.1200
- Language
- English
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Sign
- Reflective Type
- Non-Reflective
- Text Legend
- ARGON FULL CYLINDERS
- Write-On Area
- No
- Brady Material Number
- B-302
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Polyester with Polyester Overlaminate
- SAP B-Number
- B-302
- Depth (mm/cm/m)
- 0.15 mm
- Dimensions (Metric)
- 177.8 mm H x 0.15 mm D
- Height (in/ft/yd)
- 7 in
- Maximum Service Temperature °C
- 110 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 7 in H x 10 in W x 0.006 in D
- Thickness (in/ft/yd)
- 0.01 in
- Width (in/ft/yd)
- 10 in
Calculated Sign ShapeHorizontal Rectangle
Compatible Surface TypesCold; High Surface Energy
Image or TextText Only
Meets Industry Standards - SignsGlobally Harmonized System (GHS)
Number of Printed Sides1
PSPA Photoluminescence ClassNot Illuminated
ShapeRectangle
Write-OnNo
Adhesive TypePermanent Acrylic
IlluminationNot Illuminated
LaminatedLaminated
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Depth (in/ft/yd)0.006 in
Dimensions7 in H x 10 in W x 0.006 in D
Dimensions 27 in H x 10 in W
Height (mm/cm/m)177.8 mm
Maximum Service Temperature °F230 °F
Minimum Application Temperature °F0 °F
Minimum Service Temperature °F-40 °F
Sign Size-General7 in x 10 in
Thickness (mm/cm/m)0.254 mm
Width (mm/cm/m)25.4 cm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
