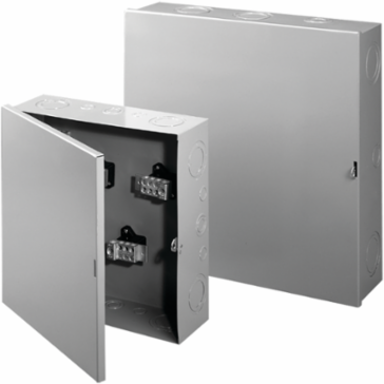

nVent Hoffman ASB224R Splitter Box Type 1 4-wire 225 amps, 16.00x16.00x5.00, Gray, Steel
- MPN: ASB224R
- UPC: 783510138738
- PPN: HOF-ASB224R
- UNSPSC: 39121303
CAD
$194.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Splitter Box, Type 1 splits feeder circuit conductors into multiple branch circuit conductors. This Splitter Box Type 1 4-wire 225 amps, ASB224R item measures 16.00x16.00x5.00 inches with a material of Steel colored Gray.
Features
- Various numbers and sizes of combination knockouts are provided on all four sides: see Knockout Size and Spacing Table
- Hinged covers
- Mounting holes in back
- Includes single point ground lug
- Ground Splitter (ground bar) accessory available
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 406
- Protection Rating
- NEMA Type 1
- Color Code
- ANSI 61
- Number of Wires
- 4
- Main Lug Wire Size
- 6 AWG - 300 MCM
- Branch Lug Amps CU
- 175
- Branch Lug Quantity
- 3
- Weight
- 17.6
- Size
- 16.00x16.00x5.00 in
Height (H)406
Depth (D)127
FinishPowder Coated
Thickness (T)1.52
Main Lug Amps CU225
Main Lug Quantity1
Branch Lug Wire Size14 - 2/0 AWG
NEMA Rating1 Indoor, electrical protection
MaterialSteel
ColorGray
