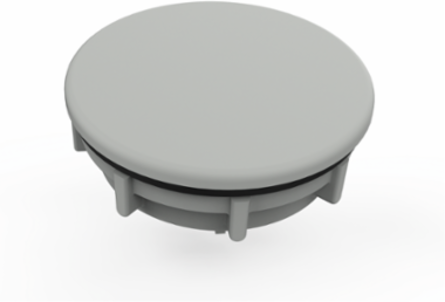

nVent Hoffman ASPB100125NM Hol-Sealers Hole Seal 2-1/19 Inch x 3mm Light Gray Plastic
- MPN: ASPB100125NM
- UPC: 783510163082
- PPN: HOF-ASPB100125NM
- UNSPSC: 39121321
CAD
$51.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for use in corrosive environments to seal extra pushbutton holes, conduit openings and knockout openings against dust, dirt, oil and water. These hole seals are suitable for sealing enclosure openings in industries such as petroleum and chemical processing, wastewater processing, pulp and paper, outdoor monitoring and any other industry exposed to harsh environments.
Features
- Innovative 3-in-1 self-centering design reduces inventory requirements; 3 models cover 9 common industry cutouts ranging from 1/2 inch (13mm) to 2-1/2 inch (64mm)
- Non-metallic construction provides superior corrosion resistance for reliability in harsh environments
- UV stabilized; ideal for direct sunlight (avoids fiberbloom associated with fiberglass)
- Chemically resistant to a broad range of chemicals
- Durable and impact resistant; resists cracking
- Sold in quantities of 2 per catalog number
- Cost-effective alternative to stainless steel
- Polyester material has a UL 94 rating of 5VA
- Easy to install; no tools required
- Thread and nut are constructed of non-glass-filled polyester
- Oil-resistant gasket included
Documentation & Downloads
Specifications
Additional
- Outside Diameter
- 56 mm
- Torque
- 20
- Finish
- RAL 7035 light-gray textured
- Works With
- NEMA & IEC
- Product Family
- Hol-Sealers
- Modification Services
- Yes
- Compliance
- UL 508A Component Recognized; CSA File No. 42186; NEMA/EEMAC Type 3R, 4, 4X, 12, 13; IEC 60529, IP66
- Environmental Resistance
- Chemically resistant, impact resistant, resists cracking
- UV Stabilized
- Yes
- Design
- 3-in-1 self-centering
Thickness3 mm
MaterialNon-glass-filled polyester
ColorLight Gray
Weight0.18
Sub BrandHol-Sealers
UL RatingUL 94 5VA
GasketOil-resistant
Corrosion ResistanceSuperior
Nut OrientationA
