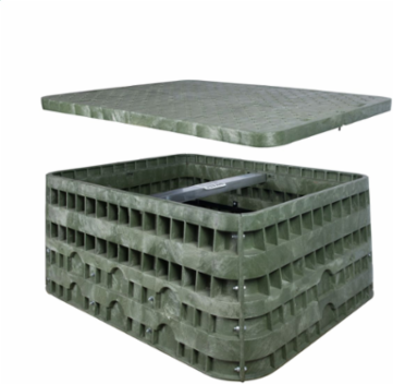

Hubbell PM304824HDH00009 Assembly, HDPE, 30"x48"x24", 5k rated, hex head bolts
- MPN: PM304824HDH00009
- UPC: 662037200718
- PPN: HBL-PM304824HDH00009
- UNSPSC: 39121336
CAD
$2344.57
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PenCell load rated and ANSI/SCTE 77 certified enclosure assemblies house and protect critical utility components for the Commercial & Industrial, Communications, Electric Utility and Water markets nationwide.
Features
- Lightweight and high strength structural foam HDPE
- Durable, long lasting and UV-Resistant
- HDPE or Polymer Concrete Cover options to meet different load-rating needs
- Multiple styles and sizes available
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 48 in x 30 in x 24 in |
| Length | 48 in |
| Height | 24 in |
| Type | Below Ground Boxes |
| Weight | 165.966 lb. |
| Class Code | L40 |
| Harmonization Code | 3926909989 |
| Replaced Catalog Number | PEM-3048PCLH |
| Material | HDPE Plastic |
| BOX SIZE | (in) |
| NAICS Code | 3261998191 |
| Description - Slang | Plastic Assembly |
|---|---|
| Insulated? | No |
| Product Type | Flared Wall Assembly |
| Size | 48 in x 30 in x 24 in |
| Width | 30 in |
| Weight Load Rating (Design/Test) | 22,000/33,750 lb. |
| Freight Class Code | 05080800 |
| Image Actual Or Representative | R |
| Sub Class Code | L40L440 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662037200718 |
