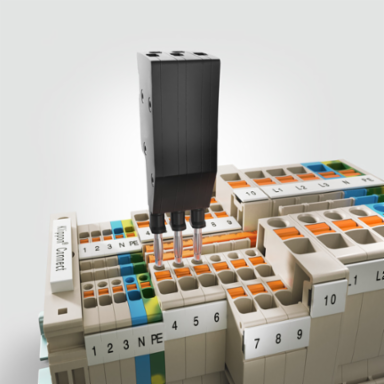

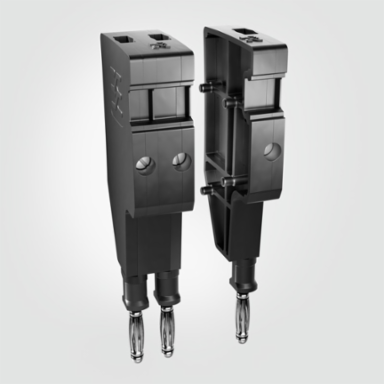

Weidmuller 1991890000 ATPG 1.5-10 L Test Adapter, 2.008 Inch Depth, 0.138 Inch Width, Black, Wemid Material
- MPN: 1991890000
- PPN: WDM-1991890000
CAD
$10.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ATPG 1.5-10 L Test Adapter, 2.008 Inch Depth, 0.138 Inch Width, Black, Wemid Material
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 3.5 mm |
|---|---|
| Height | 18.5 mm |
| Depth | 51 mm |
| Net weight | 2.52 g |
| Width (inches) | 0.138 inch |
|---|---|
| Height (inches) | 0.728 inch |
| Depth (inches) | 2.008 inch |
Additional Technical Data
| Open sides | closed |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | black |
|---|
Classifications
| ETIM 6.0 | EC002555 |
|---|---|
| eClass 9.0 | 27-14-11-48 |
| eClass 10.0 | 27-14-11-48 |
| ETIM 7.0 | EC002555 |
|---|---|
| eClass 9.1 | 27-14-11-48 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| End cover plate required | No |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| Number of potentials | 1 |
|---|---|
| Number of clamping points per level | 1 |
| PE connection | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated cross-section | 1.5 mm² |
|---|---|
| Rated current | 0.2 A |
| Power loss in accordance with IEC 60947-7-x | 0.56 W |
| Pollution severity | 2 |
| Rated voltage | 250 V |
|---|---|
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
| Rated impulse withstand voltage | 2.5 kV |
Conductors For Clamping (Rated Connection)
| Connection direction | top |
|---|---|
| Stripping length | 6 mm |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 1.5 mm² |
| Number of connections | 1 |
|---|---|
| Type of connection | Screw connection |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
