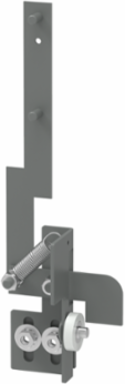

nVent Hoffman AUORMK Universal Free-Stand Operator Release Mechanism, 9.88x1.61, Gray, Steel
- MPN: AUORMK
- UPC: 783510391669
- PPN: HOF-AUORMK
- UNSPSC: 39121321
CAD
$122.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Operator Release Mechanism provides connection between primary door handle and disconnect device. This Universal Free-Stand Operator Release Mechanism, AUORMK item measures 9.88x1.61 inches with a material of Steel colored Gray.
Features
- Operator Release Mechanism provides a connection between the primary door handle position and the disconnect device.
- When the primary door handle is opened, the disconnect cannot be turned on
- The nVent Hoffman AUORMK provides a critical mechanical linkage between your enclosure's primary door handle and the internal disconnect switch. By ensuring the disconnect device cannot be switched to the "ON" position while the primary enclosure door is open, this mechanism protects field technicians from accidental arc flash exposure and uninsulated high-voltage hazards.
- This operator release kit features a compact design measuring exactly 9.88 inches in height and 1.61 inches in width (251mm x 41mm). Its narrow footprint fits tightly within the hardware channel of your enclosure, maintaining optimal space for wire routing, terminal blocks, and secondary control elements without structural interference.
- This interlock mechanism is engineered explicitly for nVent Hoffman Universal Free-Stand Enclosures and requires an Operator Adapter for Preferred Cutouts (sold separately) to complete installation. It bridges the spatial gap between standard door handles and major brand disconnect mechanisms, removing the need for custom-machined brackets or field-fabricated modifications.
- Integrating this genuine nVent Hoffman release mechanism allows your industrial control panels to comply with strict UL 508A safety interlocking mandates for multi-door enclosures. It provides the required mechanical defeat function that allows authorized technicians controlled access for testing while ensuring the system satisfies strict safety code audits and local electrical inspections.
Documentation & Downloads
Specifications
Additional
- Height
- 9.88 in
- Depth
- 1.97 in
- Weight
- 1.2 lb
- Finish
- Powder Coated
- Function
- Connects primary door handle to disconnect device; prevents disconnect from turning on when primary door is open
- Insulation
- No
Width1.61 in
Thickness1.52 in
MaterialMild Steel
ColorANSI 61 Gray
Works WithNEMA
KnockoutsNo
