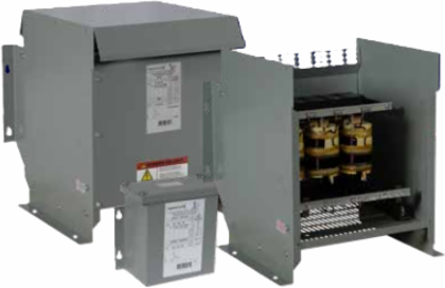

Hammond Power Solutions Y150PKCH3L0U AUTO 150KVA 600-480 CU 3R NEUTRAL 60HZ
- MPN: Y150PKCH3L0U
- UPC: 803423137656
- PPN: HPS-Y150PKCH3L0U
CAD
$4112.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
HPS three phase autotransformers are available for applications where small voltage corrections are necessary in a distribution
system. They are frequently used as an economical alternative to general purpose distribution isolation transformers to adjust the
supply voltage to match specific load requirements when load isolation from the supply line is not required. Autotransformers can be
used as either a step-up or step-down transformer.
Features
- This versatile three-phase autotransformer is configured for both 600Y to 480Y and 480Y to 380Y volt operations, allowing it to seamlessly adapt standard commercial supplies to machine operating voltages. This dual capability functions efficiently as either a step-up or step-down unit, providing a flexible and reliable solution for changing industrial site demands.
- By utilizing a shared single-winding design, this 150 kVA unit delivers a much more compact physical profile (28.75" H x 23.9" W x 25" D) and weighs only 285 lbs. It cuts down raw material costs and maximizes available floor or wall space in dense electrical rooms while providing up to 5% standard efficiency regulation.
- Built with premium copper windings and a robust 220 C insulation class, this transformer offers superior electrical conductivity, minimal thermal expansion, and a stable 150 C temperature rise. The high-grade copper construction ensures exceptional short-circuit ride-through capability and long-term durability under heavy continuous industrial duty cyclical loads.
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 150 kVA
- Frequency
- 60 Hz
- Dimensions
- 23.9 in W x 25 in D x 28.75 in H
- Material
- Copper
- Mounting Type
- Floor or Wall Mount (kit required for wall)
Voltage600Y/480Y Volts
PhaseThree Phase
Weight285 lbs (129 kg)
Enclosure TypeNEMA 3R
Neutral TerminalsIncluded
