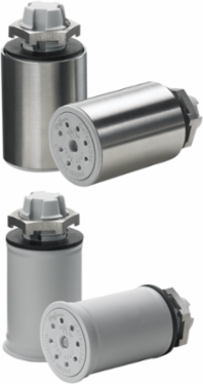

nVent Hoffman AVDR4NM H2Omit Vent Drain, 2.64 x 1.25 x 1.25 Inch, Gray Polyester
- MPN: AVDR4NM
- UPC: 783510177638
- PPN: HOF-AVDR4NM
- UNSPSC: 40101902
CAD
$91.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
H2Omit Vent Drains allow accumulated water to drain out the bottom of an enclosure. This H2Omit Vent Drain, AVDR4NM item measures 2.64x1.25x1.25 with a material of Polyester colored Gray.
Features
- Uses gravity to remove collected liquids
- One-way mechanical shut-off when pressure is equalized prevents water and contaminants from entering the enclosure
- Helps reduce corrosion that can limit the life of internal electrical and electronic components
- Installs in a 7/8-inch hole in the bottom of enclosure with provided nut or in a 1/2-inch NPT/NPS threaded conduit hub
- Installs in the bottom of mild steel, aluminum, stainless steel or non-metallic enclosures
- Maintains the enclosure UL Type rating when properly installed
- Stainless Steel Vent Drain
- Corrosion-resistant polyester material with a Type 304 stainless steel sleeve
- Non-Metallic Drain Vent
- Corrosion-resistant polyester material
- 2.00-inch long x 1.25-inch outside diameter
Documentation & Downloads
Specifications
Additional
- Length
- 2.00 in
- Hole Size
- 7/8 in
- Material
- Polyester (corrosion-resistant)
- Weight
- 0.15
- Depth
- 32
- Color
- Gray
Diameter1.25 in
Thread Size1/2 in NPT/NPS
FinishSmooth Matte
Width32
Height67
Enclosure CompatibilityMild steel, aluminum, stainless steel, non-metallic
