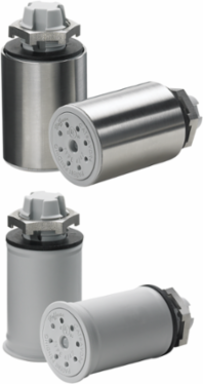

nVent Hoffman AVDR4SS4 H2Omit Vent Drain, 2.64 Inch x 1.38 Inch x 1.38 Inch, Stainless Steel 304
- MPN: AVDR4SS4
- UPC: 783510177645
- PPN: HOF-AVDR4SS4
- UNSPSC: 40101902
CAD
$187.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
H2Omit Vent Drains allow accumulated water to drain out the bottom of an enclosure. This H2Omit Vent Drain, AVDR4SS4 item measures 2.64x1.38x1.38 with a material of SS Type 304.
Features
- Uses gravity to remove collected liquids
- One-way mechanical shut-off when pressure is equalized prevents water and contaminants from entering the enclosure
- Helps reduce corrosion that can limit the life of internal electrical and electronic components
- Installs in a 7/8-inch hole in the bottom of enclosure with provided nut or in a 1/2-inch NPT/NPS threaded conduit hub
- Installs in the bottom of mild steel, aluminum, stainless steel or non-metallic enclosures
- Maintains the enclosure UL Type rating when properly installed
- Stainless Steel Vent Drain
- Corrosion-resistant polyester material with a Type 304 stainless steel sleeve
- Non-Metallic Drain Vent
- Corrosion-resistant polyester material
- 2.00-inch long x 1.25-inch outside diameter
Documentation & Downloads
Specifications
Additional
- Material
- Stainless Steel 304, Corrosion-resistant polyester
- Length
- 2.64 in
- Depth
- 35
- Height
- 67
- Installation Hole Size
- 7/8 in
- Compliance
- UL 508A Listed, cUL Listed, NEMA Type 4, 4X, IEC IPx6
- Sub Brand
- H2Omit
- Length Non-Metallic Version
- 2.00 in
Diameter1.38 in
Weight0.25
Width35
Thread Size1/2 in NPT/NPS
FinishBrushed
Product FamilyH2Omit
Outer Diameter Non-Metallic Version1.25 in
Compatible Enclosure MaterialsMild steel, aluminum, stainless steel, non-metallic
