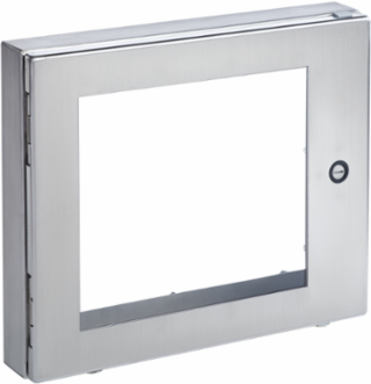

nVent Hoffman AWDH1418N4 Deep Hinged Window Kit, 12.19 x 14.56 Inch, Gray Steel, NEMA 4 Rated
- MPN: AWDH1418N4
- UPC: 783510142377
- PPN: HOF-AWDH1418N4
- UNSPSC: 39121321
CAD
$1130.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Deep Hinged Wdw Kit provide protection, visibility and easy access to display equipment. This Deep-Hinged Window Kit Type 4 and 4X, AWDH1418N4 item measures 12.19x14.56 with a material of Steel colored Gray.
Features
- Quarter-turn latches for quick access
- 0.25-in. (6-mm) thick, clear polycarbonate windows for easy viewing
- 2.5-in. (64-mm) deep to allow for deep controls
- Built-in gasket compression stop on back of window kit facilitates flush mounting
- Designed for either left or right hinging
- Includes mounting template and mounting hardware
- Easy-to-remove clip-style hinge pin
- Optional Concept handles can be purchased separately to replace the standard quarter-turn latches
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 457 |
| Color Code | ANSI 61 |
| Window Size (M x N) | 8.68 x 9.83 |
| NEMA Rating | 4 Watertight |
| Works With | NEMA & IEC |
| Size | 12.19 x14.56 in |
| Height (H) | 356 |
|---|---|
| Finish | Powder Coated |
| Thickness (T) | 1.9 |
| IP Rating | IP66 |
| Weight | 10.06 |
| Material | Steel |
| Color | Gray |
