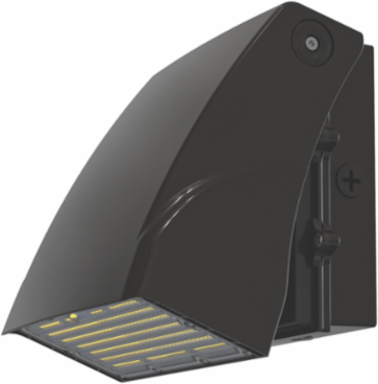

RAB 080845 Wall Light LED AWL1S-LED30A15 30A15W 120-347V Variable Temp Bronze Finish Dimmable with Photocell
- MPN: 080845
- UPC: 061184808455
- PPN: RAB-080845
CAD
$142.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The AWLS-LED select series wall light is a colour selectable fixture with an adjustable head to direct light wherever needed. Ideal for use in perimeter lighting, condos, schools, and town houses
Features
- Colour Selectable Fixture – Installer can choose between 3000K/4000K/5000K through a switch inside the housing
- AWL1S-LED30A15 is a lumen adjustable unit with 3 settings at 30W, 20W, and 15W
- Adjustable head to direct light wherever needed.
- Hinge Assembly allows Installer to use both hands for wiring.
- Level bubble for quick alignment
- Photocell is included.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120-347V
- Total Lumens
- 3599
- Dimmable
- Yes, 0-10V Dimming
- LED Life
- 100,000 hours
- Height
- 12.7 in.
- Depth
- 9.3 in.
- Number of Conduit Entries
- 5
- Lens Material
- Clear Polycarbonate
- Power Factor
- >0.9
- Efficacy
- 120 lm/W
- B-U-G Rating
- 2-2-1
Wattage30W
CRI>70
Surge Protection2.5kV
Operating Temperature-40C to +50C
Width12.8 in.
Weight2.55 lbs
MaterialDie Cast Aluminum
FinishBronze
THD0.15
Lighting ControlsPhotocell
Country of OriginChina
