Schmersal 161157373 AZ16 Keyed Interlock Switch
- MPN: 161157373
- PPN: SCM-161157373
CAD
$142.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

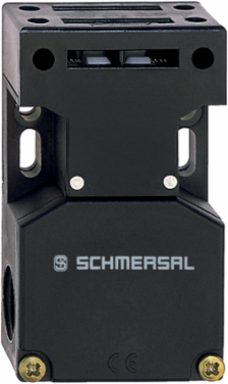

AZ16 Keyed Interlock Switch
Documentation & Downloads
Specifications
Additional
- Mechanical Lifetime
- 1,000,000 Operations
- Latching Force
- 30 N
- Positive Break Force, Minimum
- 20 N
- Thermal Test Current
- 10 A
- Rated Insulation Voltage
- 500 V
- Overvoltage Category
- III
- Electrical Connection Type
- Screw terminals M20 x 1.5
- Cable Section Range
- 0.25 mm² to 2.5 mm²
- Mounting
- Screws, 2x M6
- Weight
- 115 g
- Number of Auxiliary Contacts
- 1
- Number of Cable Glands
- 3
- Safety Classification Category
- 1, 3
- Switching Element
- 1 NO contact, 2 NC contacts
- Contact Material
- Silver
- Safety Contacts Voltage and Current (DC-13)
- 24 VDC, 4 A
- Auxiliary Contacts Voltage and Current (DC-13)
- 24 VDC, 4 A
- Degree of Protection
- IP67
- Storage and Transport Temperature
- -40 to +85 °C
Maximum Switching Frequency4,000 /h
Positive Break Travel8 mm
Positive Break Force per NC Contact, Minimum10 N
Required Rated Short-Circuit Current1,000 A
Rated Impulse Withstand Voltage6 kV
Degree of Pollution3
Cable Entries3 x M20 x 1.5
Allowed Cable TypesSolid single-wire, solid multi-wire, flexible
Dimensions52 mm x 90 mm x 30 mm
Number of Actuating Directions3
Number of Safety Contacts2
Safety Classification Performance Levelc, d
Safety StandardsEN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
Switching PrincipleSlow action, positive break NC contact
Safety Contacts Voltage and Current (AC-15)230 VAC, 4 A
Auxiliary Contacts Voltage and Current (AC-15)230 VAC, 4 A
Housing MaterialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Ambient Temperature Range-30 to +80 °C
Maximum Installation Altitude2000 m
