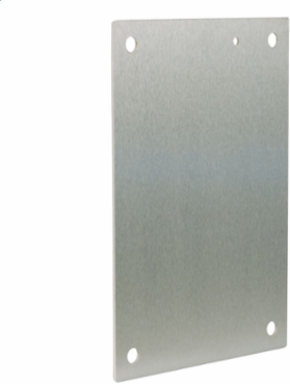

Wiegmann ALNP2016 Back Panel 17X13 Aluminum
Wiegmann ALNP2016 Back Panel 17X13 Aluminum
- MPN: ALNP2016
- UPC: 786725364466
- PPN: HBL-ALNP2016
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$154.71/ EA
Description
Back Panel 17X13 Aluminum
Features
- Can also be used in N1, RHC, N4, N4X, N12, and N412 wall-mount enclosures
- Aluminum panels are 5052-H32 aluminum alloy, .125-inch thick. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, and 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABN12); Large JIC (B-CH, Large), Single Door N12.
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 13.000 in
- Height
- 17 in
- Shape
- Rectangle
- Type
- Back Panel
- Weight
- 3 lb.
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- ALUMINUM PANEL 17" X 13"
- Harmonization Code
- 7616995190
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Construction
- Non-Flanged
- Series
- ALN4 Series
- BOX SIZE
- 17.000x1.250x13.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725364466
Country of OriginMX
ApplicationFor use with NEMA 1, 3R, 12, 4, and 4X wall-mounts.
MountingMounting Holes
Special FeaturesAluminum panels are 5052-H32 aluminum alloy, .125-inch thick. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, and 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABN12); Large JIC (B-CH, Large), Single Door N12.
Width13 in
Mounting TypeMounting Holes
Class CodeP05
Freight Class Code00174410
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP05P080
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Certifications
- EU RoHS Indicator
- No
