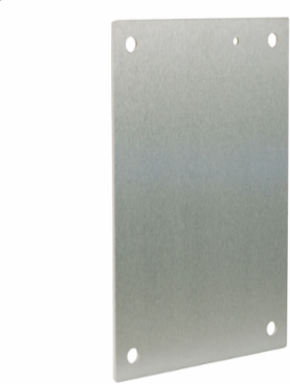

Wiegmann ALNP2020 Back Panel 17X17 Aluminum
Wiegmann ALNP2020 Back Panel 17X17 Aluminum
- MPN: ALNP2020
- UPC: 786725364503
- PPN: HBL-ALNP2020
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$219.18/ EA
Description
Back Panel 17X17 Aluminum
Features
- Can also be used in N1, RHC, N4, N4X, N12, and N412 wall-mount enclosures
- Aluminum panels are 5052-H32 aluminum alloy, .125-inch thick. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, and 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABN12); Large JIC (B-CH, Large), Single Door N12.
Specifications
Specifications
- Country of Origin
- Mexico
- Height
- 17 in
- Shape
- Rectangle
- Type
- Back Panel
- Weight
- 4 lb.
- Mounting Type
- Mounting Holes
- Class Code
- P05
- Freight Class Code
- 00174410
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P05P080
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ApplicationFor use with NEMA 1, 3R, 12, 4, and 4X wall-mounts.
MountingMounting Holes
Special FeaturesAluminum panels are 5052-H32 aluminum alloy, .125-inch thick. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, and 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABN12); Large JIC (B-CH, Large), Single Door N12.
Width17 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
ARRA CompliantContact Manufacturer
Description - InvoicePANEL,AL, 17 X 17
Harmonization Code7616995190
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
ConstructionNon-Flanged
SeriesALN4 Series
BOX SIZE0.700x17.650x18.050 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725364503
Pallet Height32.500 in
Pallet Weight694.600 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorNo
