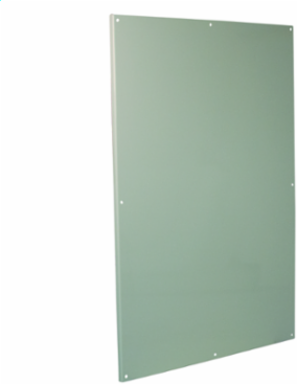

Wiegmann NPDD7260 Back Panel (Double Door Floor-Mount) 56X68 Carbon Steel - White
- MPN: NPDD7260
- UPC: 786725366651
- PPN: HBL-NPDD7260
- UNSPSC: 39121302
CAD
$1569.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Back Panel (Double Door Floor-Mount) 56X68 Carbon Steel - White
Features
- Fabricated from carbon steel
- Painted with white polyester powder
- Steel panels are fabricated from 10 gauge carbon steel. Panels are painted with a white smooth hybrid finish. Panels are used in NEMA 12 two door floor-mounted enclosures and some 2-door wall-mount enclosures. Fits: SSN4D, SSN4D3PT-A, N12 Floor Mount, WAX, WACPX, WAXSSN4, WACPXSSN4, WAWF, SSN4WF3PT.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Color
- White
- Height
- 56 in
- Shape
- Rectangle
- Type
- Back Panel
- Weight
- 151 lb.
- Finish Type
- Smooth Hybrid Paint
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- PANEL,CS, 56 X 68
- Harmonization Code
- 7326908688
- Lead Time
- 14 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Construction
- Flanged
- Series
- NPDD Series
- BOX SIZE
- 1.400x68.125x56.250 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725366651
- Pallet Height
- 12.750 in
- Pallet Weight
- 1550.000 lb.
- NAICS Code
- 3359326101
ApplicationUsed in NEMA 12 two door floor-mounted enclosures and some 2-door wall-mount enclosures.
FinishSmooth Hybrid Paint
MountingMounting Holes
Special FeaturesSteel panels are fabricated from 10 gauge carbon steel. Panels are painted with a white smooth hybrid finish. Panels are used in NEMA 12 two door floor-mounted enclosures and some 2-door wall-mount enclosures. Fits: SSN4D, SSN4D3PT-A, N12 Floor Mount, WAX, WACPX, WAXSSN4, WACPXSSN4, WAWF, SSN4WF3PT.
Width68 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Mounting TypeMounting Holes
Class CodeP05
Freight Class Code00174410
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP05P077
MaterialCarbon Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack151.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length68.125 in
Pallet Width56.250 in
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorYes
