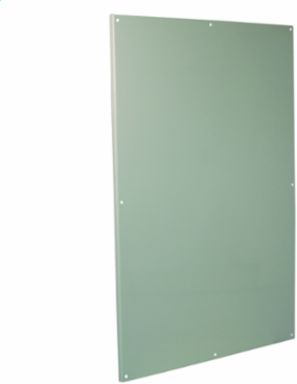

Wiegmann NPDD7272 Back Panel (Double Door Floor-Mount) 68X68 Carbon Steel - White
- MPN: NPDD7272
- UPC: 786725366705
- PPN: HBL-NPDD7272
- UNSPSC: 39121302
CAD
$1985.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Back Panel (Double Door Floor-Mount) 68X68 Carbon Steel - White
Features
- Fabricated from carbon steel
- Painted with white polyester powder
- Steel panels are fabricated from 10 gauge carbon steel. Panels are painted with a white smooth hybrid finish. Panels are used in NEMA 12 two door floor-mounted enclosures and some 2-door wall-mount enclosures. Fits: SSN4D, SSN4D3PT-A, N12 Floor Mount, WAX, WACPX, WAXSSN4, WACPXSSN4, WAWF, SSN4WF3PT.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Application | Used in NEMA 12 two door floor-mounted enclosures and some 2-door wall-mount enclosures. |
| Cubic Capacity | 5780 cu.in |
| Height | 68 in |
| Shape | Rectangle |
| Type | Back Panel |
| Weight | 184 lb. |
| Finish Type | Smooth Hybrid Paint |
| Mounting Type | Mounting Holes |
| Class Code | P05 |
| Freight Class Code | 00174410 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P05P077 |
| Material | Carbon Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 184.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 68.250 in |
| Pallet Width | 68.250 in |
| Depth | 1.25 in |
|---|---|
| Color | White |
| Finish | Smooth Hybrid Paint |
| Mounting | Mounting Holes |
| Special Features | Steel panels are fabricated from 10 gauge carbon steel. Panels are painted with a white smooth hybrid finish. Panels are used in NEMA 12 two door floor-mounted enclosures and some 2-door wall-mount enclosures. Fits: SSN4D, SSN4D3PT-A, N12 Floor Mount, WAX, WACPX, WAXSSN4, WACPXSSN4, WAWF, SSN4WF3PT. |
| Width | 68 in |
| Engineering Drawing 3 Display Text | MOD Center Drawings Instructions |
| Material type | Carbon Steel |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | PANEL,CS, 68 X 68 |
| Harmonization Code | 7326908688 |
| Lead Time | 14 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Construction | Flanged |
| Series | NPDD Series |
| BOX SIZE | 1.500x68.250x68.250 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725366705 |
| Pallet Height | 9.000 in |
| Pallet Weight | 999.000 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|
