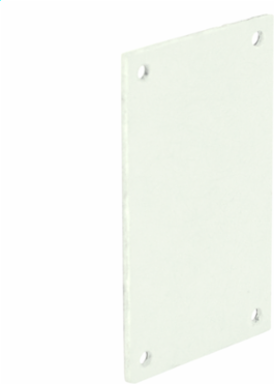

Wiegmann P1614 Back Panel (JIC B Series) 14.8X12.8 Carbon Steel - White
- MPN: P1614
- UPC: 786725332700
- PPN: HBL-P1614
- UNSPSC: 39121302
CAD
$60.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Back Panel (JIC B Series) 14.8X12.8 Carbon Steel - White
Features
- Fabricated from carbon steel
- Painted with white polyester powder
- Steel panels are 14 gauge and have a white smooth hybrid finish. Panels fit the following enclosures: B, BCH, BN4, BN4CH, BN4SS, BN4CHSS, BN4AL, BN4CHAL.
Documentation & Downloads
Specifications
Key Specifications
- Cubic Capacity
- 243.75 cu.in
- Mounting
- Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- Mexico
- Actual Width
- 12.88 in
- Depth
- 1.25 in
- Weight
- 4 lb.
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Finish Type
- Smooth Hybrid Paint
- Mounting Type
- Mounting Holes
- Type
- Back Panel
- Description - Invoice
- PANEL,CS, 14 7/8" X 12 7/8"
- Harmonization Code
- 7326909999
- Lead Time
- 14 wk
- Order Multiple
- 1 EA
- Sub Class Code
- P05P079
- Material
- Carbon Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
FinishSmooth Hybrid Paint
Special FeaturesSteel panels are 14 gauge and have a white smooth hybrid finish. Panels fit the following enclosures: B, BCH, BN4, BN4CH, BN4SS, BN4CHSS, BN4AL, BN4CHAL.
Stock IndicatorS - Shelf Stock
Actual Height14.88 in
ColorWhite
Height15 in
Width13 in
ApplicationFor use with JIC enclosures.
Material typeCarbon Steel
ShapeRectangle
Class CodeP05
Freight Class Code00174410
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
ConstructionNon-Flanged
SeriesP Series
BOX SIZE0.850x13.600x15.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00786725332700
Pallet Height22.350 in
Pallet Weight586.800 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Yes
EU RoHS IndicatorYes
