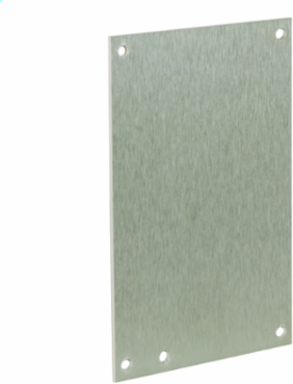

Wiegmann P1008AL Back Panel (JIC B Series) 8.8X6.8 Aluminum
- MPN: P1008AL
- UPC: 786725334650
- PPN: HBL-P1008AL
- UNSPSC: 39121302
CAD
$68.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Back Panel (JIC B Series) 8.8X6.8 Aluminum
Features
- Fabricated from aluminum
- Panels mount to provided weldnuts
- Aluminum panels are 5052-H32 aluminum alloy, .080-inch thick. Panels fit the following enclosures: B, BCH, BN4, BN4CH
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Width
- 6.88 in
- Height
- 9 in
- Shape
- Rectangle
- Type
- Back Panel
- Weight
- 1 lb.
- Mounting Type
- Mounting Holes
- Class Code
- P05
- Freight Class Code
- 00174410
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P05P079
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Height8.88 in
ApplicationFor use with JIC enclosures.
MountingMounting Holes
Special FeaturesAluminum panels are 5052-H32 aluminum alloy, .080-inch thick. Panels fit the following enclosures: B, BCH, BN4, BN4CH
Width7 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
ARRA CompliantContact Manufacturer
Description - InvoicePANEL,AL, 8 7/8" X 6 7/8"
Harmonization Code7616995190
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
ConstructionNon-Flanged
SeriesP Series
BOX SIZE0.500x9.500x7.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00786725334650
Pallet Height24.500 in
Pallet Weight1045.000 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorYes
