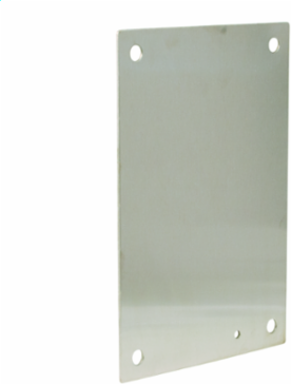

Wiegmann NP2420SS Back Panel (N1/3R/4/12) 21X17 304 Stainless Steel
Wiegmann NP2420SS Back Panel (N1/3R/4/12) 21X17 304 Stainless Steel
- MPN: NP2420SS
- UPC: 786725864874
- PPN: HBL-NP2420SS
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$469.22/ EA
Description
Back Panel (N1/3R/4/12) 21X17 304 Stainless Steel
Features
- Fabricated from 304 stainless steel
- Exterior surface has a smooth grained finish
- Stainless panels are 12 gauge. Panel with any side over 20.00" has 3/4" flange on all sides. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, & 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABM12); Large JIC (B-CH, Large) Single door N12.
Specifications
Specifications
- Actual Height
- 1.375 in
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 23.250 in
- Color
- Stainless Steel
- Mounting
- Mounting Holes
- Special Features
- Stainless panels are 12 gauge. Panel with any side over 20.00" has 3/4" flange on all sides. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, & 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABM12); Large JIC (B-CH, Large) Single door N12.
- Width
- 23 in
- Mounting Type
- Mounting Holes
- Class Code
- P05
- Freight Class Code
- 00174410
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P05P080
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725864874
- Pallet Height
- 48.000 in
- Pallet Weight
- 1581.000 lb.
Actual Width23.25 in
Country of OriginUS
ApplicationFor use with NEMA 1, 3R, 12, 4, and 4X wall-mounts.
Height1 in
ShapeRectangle
TypeBack Panel
Weight12 lb.
ARRA CompliantContact Manufacturer
Description - InvoicePANEL,SS,304 21" X 17"
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
ConstructionFlanged
SeriesNP Series
BOX SIZE1.375x23.250x23.250 (in)
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
