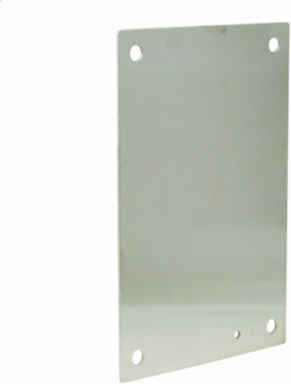

Wiegmann NP3630SS Back Panel (N1/3R/4/12) 33X27 304 Stainless Steel
- MPN: NP3630SS
- UPC: 786725864935
- PPN: HBL-NP3630SS
- UNSPSC: 39121302
CAD
$1098.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Back Panel (N1/3R/4/12) 33X27 304 Stainless Steel
Features
- Fabricated from 304 stainless steel
- Exterior surface has a smooth grained finish
- Stainless panels are 12 gauge. Panel with any side over 20.00" has 3/4" flange on all sides. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, & 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABM12); Large JIC (B-CH, Large) Single door N12.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Width
- 35.25 in
- Color
- Stainless Steel
- Mounting
- Mounting Holes
- Special Features
- Stainless panels are 12 gauge. Panel with any side over 20.00" has 3/4" flange on all sides. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, & 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABM12); Large JIC (B-CH, Large) Single door N12.
- Width
- 35 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- PANEL,SS,304,33" X 27"
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Construction
- Flanged
- Series
- NP Series
- BOX SIZE
- 1.375x35.250x35.250 (in)
- Carton - Total Units
- 1 EA
- NAICS Code
- 3359326101
Actual Height1.375 in
ApplicationFor use with NEMA 1, 3R, 12, 4, and 4X wall-mounts.
Height1 in
ShapeRectangle
TypeBack Panel
Weight29 lb.
Mounting TypeMounting Holes
Class CodeP05
Freight Class Code00174410
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP05P080
MaterialStainless Steel
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725864935
Pallet Weight0.000 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorYes
