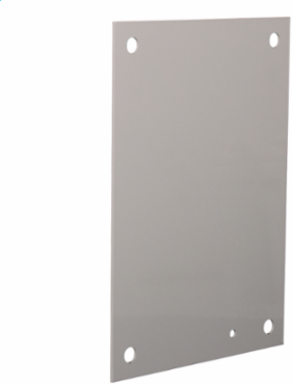

Wiegmann NP1224 Back Panel (N1/3R/4/12) 9X21 Carbon Steel - White
Wiegmann NP1224 Back Panel (N1/3R/4/12) 9X21 Carbon Steel - White
- MPN: NP1224
- UPC: 786725364954
- PPN: HBL-NP1224
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$107.65/ EA
Description
Back Panel (N1/3R/4/12) 9X21 Carbon Steel - White
Features
- Fabricated from carbon steel
- Painted with white polyester powder
- Steel panels are 12 gauge. Panel with any side over 20.00" has 3/4" flange on all sides. Steel panels are painted white smooth hybrid. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, & 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABM12); Large JIC (B-CH, Large) Single door N12.
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 9.600 in
- Color
- White
- Height
- 9 in
- Shape
- Rectangle
- Type
- Back Panel
- Weight
- 7 lb.
- Mounting Type
- Mounting Holes
- Class Code
- P05
- Freight Class Code
- 00174410
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P05P080
- Material
- Carbon Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 7.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginUS
ApplicationFor use with NEMA 1, 3R, 12, 4, and 4X wall-mounts.
FinishSmooth Hybrid Paint
MountingMounting Holes
Special FeaturesSteel panels are 12 gauge. Panel with any side over 20.00" has 3/4" flange on all sides. Steel panels are painted white smooth hybrid. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, & 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABM12); Large JIC (B-CH, Large) Single door N12.
Width21 in
Finish TypeSmooth Hybrid Paint
ARRA CompliantContact Manufacturer
Description - InvoicePANEL,CS,9X21
Harmonization Code7326908688
Lead Time14 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
ConstructionNon-Flanged
SeriesNP Series
BOX SIZE1.450x21.750x9.600 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725364954
Pallet Height50.900 in
Pallet Weight1887.560 lb.
Certifications
- EU RoHS Indicator
- Yes
