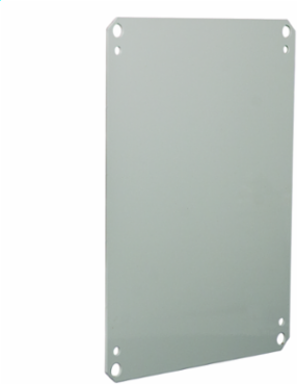

Wiegmann NP2416C Back Panel (Ultimate) 22.2X14.2 Carbon Steel - White
- MPN: NP2416C
- UPC: 786725860388
- PPN: HBL-NP2416C
- UNSPSC: 39121302
CAD
$139.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Back Panel (Ultimate) 22.2X14.2 Carbon Steel - White
Features
- Fabricated from carbon steel
- Painted with white polyester powder
- Steel panels are 12 gauge and are painted white smooth hybrid. Panels fit the following enclosures: N412C, N412WC, N412CD, N412CSTD, N412CST, N412CSSSTD, N412SS3PTC.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Actual Width
- 14.2 in
- Color
- White
- Height
- 22 in
- Shape
- Rectangle
- Type
- Back Panel
- Weight
- 10 lb.
- Finish Type
- Smooth Hybrid Paint
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- PANEL,ULTIMATE,CS,22.2X14.2
- Harmonization Code
- 7326908688
- Lead Time
- 14 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Construction
- Flanged
- Series
- NP Series
- BOX SIZE
- 1.850x24.150x23.650 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725860388
- Pallet Height
- 50.750 in
- Pallet Weight
- 585.000 lb.
- NAICS Code
- 3359326101
Actual Height22.2 in
ApplicationFor use with Ultimate N412C Series enclosures.
FinishSmooth Hybrid Paint
MountingMounting Holes
Special FeaturesSteel panels are 12 gauge and are painted white smooth hybrid. Panels fit the following enclosures: N412C, N412WC, N412CD, N412CSTD, N412CST, N412CSSSTD, N412SS3PTC.
Width14 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Mounting TypeMounting Holes
Class CodeP05
Freight Class Code00174410
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP05P080
MaterialCarbon Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorYes
