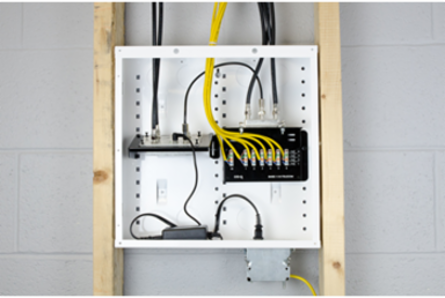

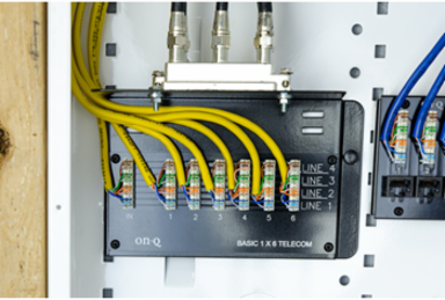

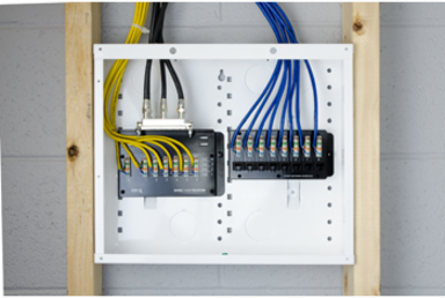

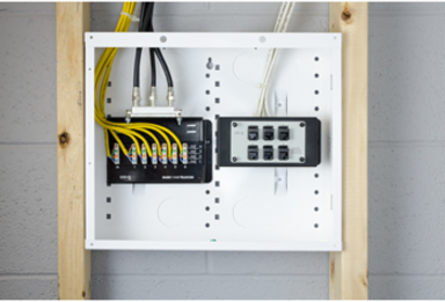

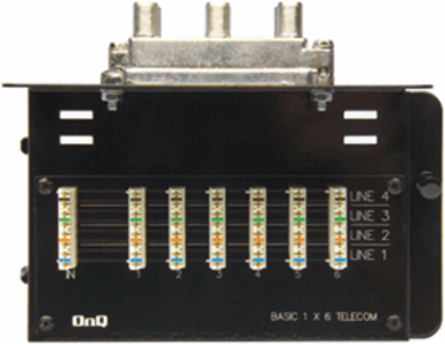

On-Q 364400-04 6x4 Basic Combo Module 364400-04
- MPN: 364400-04
- UPC: 804428008002
- PPN: P-S-36440004
- UNSPSC: 43222819
CAD
$84.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Supports telecom distribution to outlets via 110-style punchdown connections and video distribution. Does not include telecom surge protection, telecom expansion or security system interface.5 1/8"H x 6 1/2"W
Features
- Compact design provides maximum space for system modules
- Supports four-line telecom service distribution and video service distribution to room outlets
Documentation & Downloads
Specifications
Technical Information
- Bracket Required
- Mounting plate 100356-01 included
- Humidity
- 90% Relative Humidity (Non-Condensing)
- Mounting
- Mount directly in any On-Q style encolsure
- Output Impedance
- 75 ohms
- Shape
- Rectangular
- Number Of Receptacles
- 10
Frequency5-1000 MHz
Material18 Gauge CRS
Operating Temperature (Celsius)0°C to 50°C
Product Fits IntoOn-Q Style Enclosure
Receptacle Type6x 110 Punchdown Telecom, 4x RG6 "F"
Dimensions
- Height (Metric)
- 13 cm
- Length (Metric)
- 3.28"
- Width (Metric)
- 16.5 cm
Height (US)5.125"
Length (US)8.3 cm
Width (US)6.5 in
Construction Information
- Installation Location
- Enclosure
General Info
- Color
- Black
- Type
- Telecom/Video Module
FinishPowder Coat
Listing Agencies/Third Party Certifications
- UN SPSC
- 43222819
Assembly/Installation Information
- Mounting Hardware Included
- Yes
