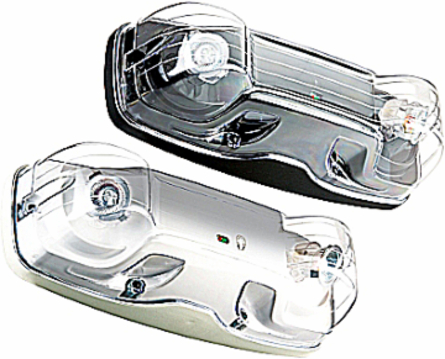

Thomas & Betts 12NXMW108CW1/2LJ Emergency Battery Unit, 12VDC, 108W, 7 Inch Height x 17-3/4 Inch Width

MPN: 12NXMW108CW1/2LJ
UPC: 782683486073
PPN: T-B-12NXMW108CW1/2LJ

$1458.33

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Battery Unit, Voltage DC: 12V, Unit Type: NEMA-4X, Colour: white, Battery Type: lead-calcium, Battery Wattage: 108W, 120VAC, self-powered, Lamp Type: MR16 LED, two lamps, Lamp Voltage: 12V, Lamp Wattage: 6W, Head Style: shielded, cold-weather 120VAC, Battery Run Time (Minimum): 30 minutes

Features

NSF Certified for food processing plants
Comes standard with non-audible advanced diagnostic charger board, 10 minute time delay and lamp disconnect
Audible warning and time delay functions can be enabled or disabled during installation
Non intrusive magnetic test switch "
Comes standard with tamper-proof screws and bit

Specifications

Packaging

Inner Quantity	1
Outer Quantity	2
Weight Uom	18 lbs. Each

Inner Dimensions (inches)	1x1x.1
Outer Dimensions (inches)	1x1x1

North American Specifications (UNSPSC)

UNSPSC	39111709 Emergency light unit
Brand Name	Emergi-Lite
Application	Institutional, Industrial, Hospitality
Wattage	108W
Battery	Lead-calcium
Lamp Type	MR16 LED
Size	7 Inches Height x 17-3/4 Inches Width
Mounting	Wall
Color	White

IGCC	3940 Emergency light unit
Type	Battery Unit
Standard	CSA
Voltage Rating	120VAC, 12VDC
Battery Runtime	30 minutes
Number Of Lamps	2
Material	Aluminum / Polycarbonate
Environmental Conditions	Cold weather -40°C [-40°F]
Lamp Wattage	6W
