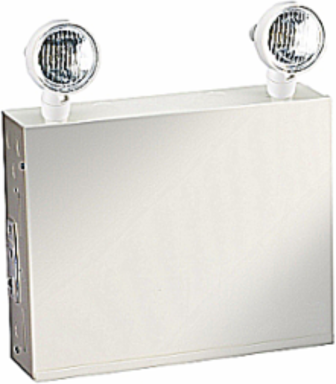

Thomas & Betts 24ESL288UND/2EF150LL Emergency Light Unit, 13-7/8 Inch Height x 16-1/8 Inch Width, 288W
Thomas & Betts 24ESL288UND/2EF150LL Emergency Light Unit, 13-7/8 Inch Height x 16-1/8 Inch Width, 288W
- MPN: 24ESL288UND/2EF150LL
- PPN: T-B-24ESL288UND/2EF150LL
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1257.67/ EA
Description
Battery Unit, Battery Type: lead-calcium, Voltage DC: 24V, Battery Wattage: 288W, Colour: polar white, 120/347VAC, diagnostics, non-audible, time delay (15 minutes), Head Style: deco, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 24V, Lamp Wattage: 4W, Cabinet Size: B, Battery Run Time (Minimum): 30 minutes
Features
- Removable front panel on cabinet provides easy access and allows unit to be mounted at ceiling height
- Solid-state pulse-type charger current-limited, temperature-compensated, short-circuit proof and reverse-polarity protected
- Electronic lockout and brownout circuits
- Sealed dust-proof transfer relay, test switch and LED indicator lights continuously monitor unit status
- NEXUS compatible
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Emergi-Lite
- Application
- Institutional, Commercial, Hospitality
- Wattage
- 288W
- Battery
- Lead-calcium
- Lamp Type
- MR16 LED
- Size
- 13-7/8 Inchez Height x 16-1/8 Inches Width
- Mounting
- Ceiling
- Lamp Wattage
- 4W
IGCC3940 Emergency light unit
TypeBattery Unit
StandardCSA
Voltage Rating120/347VAC, 24VDC
Battery Runtime30 minutes
Number Of Lamps2
MaterialSteel
ColorPolar White
Packaging
- Outer Quantity
- 1
- Weight Uom
- 28 lbs. Each
Outer Dimensions (inches)1x1x1
